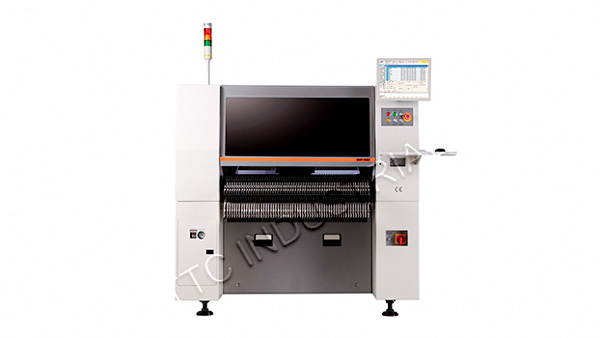

SM482 Multi-functional Placer Hanwha (Samsung) Techwin

Placement speed

30 000 cph

Accuracy

±40μm@3σ/chip, ±30μm@3σ/QFP

Feeder capacity

120 ea

PCB size

460х400 mm (740х460 mm – option)

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

SM482 Advanced Mounter is a flexible component placer for odd-shaped parts. Achieves the highest placement speed among the same class chip placers by using a flying head mechanism with 6 spindles. High reliability placer is applicable up to □55mm IC parts.

Ask for the actual price by sending an enquiry!

Main features:

1 gantry x 6 spindles/heads;

Original On-the-Fly image recognition technology (part recognition without stopping after part pickup);

Adopts high-pixel vision system allowing accurate placement of IC components;

Upgraded placement accuracy calibration system;

A polygon recognition algorithm to provide an optimum solution for the application to odd-shaped parts;

Designed to handle both electrical feeder & pneumatic feeder;

The component image noise removal function;

Automatic teaching function of components;

New vacuum system and optimized pickup/ placement motion;

Reinforced applicability to parts and PCBs;

Easy operation.

SM482 PLUS technical specification:

Model	SM482 PLUS
Placement speed	30 000 CPH
Accuracy	±40μm@3σ/chip, ±30μm@3σ/QFP
Component range:
1. Fly camera (FOV 25х25 mm)	0603 ~ □22 mm (0402 ~ □14 mm) chip, IC, connector (lead pitch 0.5mm), ~ □17 mm BGA, CSP (ball pitch 0.75mm)
2. Fix camera (FOV 45х45 mm)	~ □42 mm мм IC, connector (lead pitch 0.4mm), BGA, CSP (ball pitch 1.0mm), ~ □55mm (MFOV), ~ □75mm connectot
Max height	15 mm
PCB size	50x40 ~ 460x400 mm (max 740х460 mm – option)
PCB thickness	0.38 ~ 4.2 mm
Feeder Capacity	120 (8 mm standard)
Power	AC 200 / 208 / 220 / 240 / 380 / 415 V (50/60Hz, 3 phase) Max. 4.7 kVA
Air consumption	0.5 ~ 0.7MPa (5 ~ 7 kgf/cm²), 180 NL/Min
Dimensions	1650 x 1680 x 1530 mm
Weight	1600 kg
