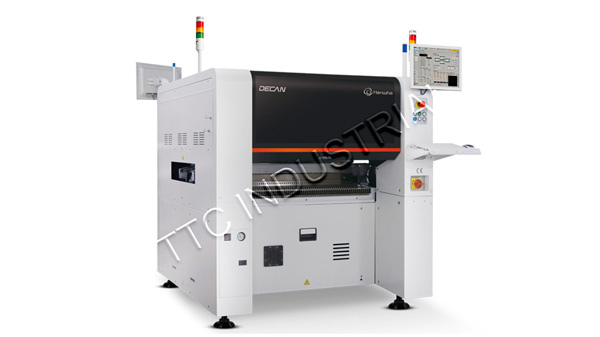

DECAN S1 Samsung Fast & Flexible Mounter

Placement speed

47000 CPH

Placement Accuracy

±28μm@3σ/03015 chip, ±35μm@3σ/IC

Feeder capacity

60 ea 8 mm

PCB size

50x40 ~1500х460 mm option

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

DECAN S1 is a next generation medium speed chip mounter with 10 spindles. Places SMT components up to 75mm in length and down to 0.3mm lead pitch.

Samsung Decan S1 provides the optimum productivity necessary for batch production and has 3 improved benefits of the P&P machines:

Increase actual productivity,
Improves placement quality,
Reduces loss rate.

Main features:

Highest performance among Chip Mounters of the same class;

Full vision system with auto-teach function;

Expands the component recognition range with a high pixel cam and flying camera;

Improves simultaneous pickup rate - arranges pocket positions automatically through communication between the machine and feeder;

Upgrades the placement speed of an odd-shape component by optimizing the fix camera recognized motion sequence;

Wide range of placed components: 03015 ~ 72 mm;

Automatic calibration during production;

Linear motors, quieter drive and less maintenance;

Unified lighting level of all placed components;

Auto maintenance prevents pickup error and improves the placement quality;

Simple graphical parts database interface;

Highly reliable and low cost per placement.

Decan S1 technical specification:

Model		Decan S1
Spindles		10 spindles x 1 gantry (FS10)
Placement speed		47 000 cph
Placement accuracy		±28μm@3σ/03015 chip, ±35μm@3σ/IC
Component range	Fly camera	03015 (01005) ~ 16 mm (height less 10 mm)
	Fixed camera	~ 42 mm (standard) 42 ~ 55 mm (MFOV) L 55 ~ 72 mm (connector MFOV) Height less 15 mm
PCB size		50х40 ~ 510х510 mm (up to 1500x460 mm option)
PCB thickness		0,38 ~ 4,2 mm
Feeder capacity (8 mm)		60 ea (120 ea — option)
Interface		SMEMA
Power		AC 200 / 208 / 220 / 240 / 380 / 415 V (50/60Hz, 3ph) Max. 3,5 kVA
Air consumption		5 ~ 7 kgf/cm², 50 Nl/min (vacuum pump)
Dimension		1430x1740x1485 mm
Weight		1600 kg
