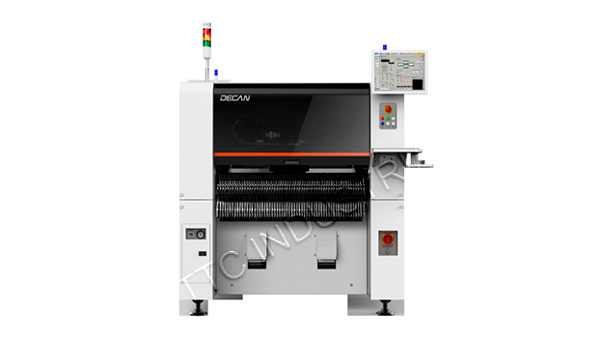

DECAN S2 Advanced chip shooter

Placement speed

92000 CPH

Accuracy

±28μm@3σ/03015 chip, ±25μm@3σ/IC

Feeder capacity 8 mm

120 ea

PCB size

50x40 ~ 510x460 mm (1200х460 - option)

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

Decan S2 is an advanced chip shooter with 10-spindle head, which can handle a wide range of components and maximize productivity with various PCB transfer systems.

It has modular conveyors system (shuttle ↔ dual) and twin servo-control high-speed flying head, that allow placement of PCB’s up to 1200mm x 460mm (optional).

Main features:

High speed and accuracy for placing microchips 03015 ~ 12x12 mm (height less 10 mm);

Modular high flexibility conveyor system for various production environments;

Conveyor option improvements allowing placement of PCB’s up to 1200mm x 460mm (optional)

Dual-lane PCB transfer system (productivity increases by 15% compared to a single lane);

Front and back operation as standard;

3D lighting system provides odd-shape component recognition;

Precision calibration algorithms and automatic calibration functions;

Twin servo control and linear motor to the Y-axis to realize low noise and vibration;

Fast electric feeders which automatically adjust their pocket positions for ultimate synchronised picking;

Built-in optimization software for PCB programming.

Decan S2 technical specification:

Model	Decan S2
Mounting heads	2 gantries x 10 spindles (FS10)
Placement speed	92 000 cph
Accuracy	±28μm@3σ/03015 chip, ±25μm@3σ/IC
Components range	03015 ~ 12 mm (height less 10 mm)
PCB size	50х40 ~ 510х460 mm, optionally 610x460, 740х460, 810x460, 1200x460
PCB thickness	0,38 ~ 4,2 mm
Feeder capacity	120 ea 8 mm
Conveyor configuration	1-2-1 (1-2-2, 2-2-2, 2-2-1, 1-1-1 options)
Interface	SMEMA
Power supply	AC 200 / 208 / 220 / 240 / 380 / 415 В (50/60Hz, 3ph) Max. 5 kVA
Air consumption	0.5 ~ 0.7MPa (5 ~ 7 kgf/cm²), 50 Nl/min
Dimension	1430x1740x1485 mm
Weight	1800 kg
