LPKF ZelFlex ZP4&Slim

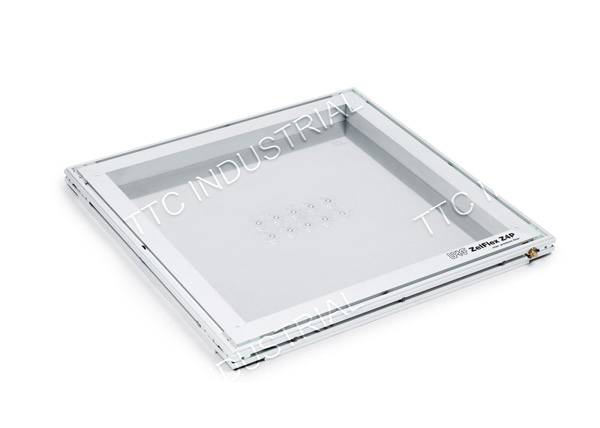

Pneumatic stencil frame LPKF ZelFlex ZP4

Outside dimension
16,0" x 20,0" ~ 29,0" x 29,0"
Inner dimension
12" x 16,1"~ 25" x 25"
Max print area
11,3" x 15,3" ~ 24,3" x 24,3"
Thickness
25 ~ 40 mm

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

The LPKF ZelFlex Z4P is a unique pneumatic four-sided stretching frame for quick and uniform clamping of the SMT metal stencils. ZP4 frame enables perfect tensioning all across the working area using a compressed air. ZP4 is produced in the several sizes and will fit to the most screen printers for the mass production or prototyping using a variety of adapters.

Main features:
  • Unique patented system of stencil stretching with compressed air;
  • Consistent and reliable print quality;
  • No air connection required while printing;
  • Measuring gauge (option);
  • Wide range of accessories are available;
  • Patented perforation system for clamping of SMT metal stencils;
  • Only one frame is required per smt line and it can be used for multiple projects;
  • Slim version ZP4 is available;
  • No special docking station is required to change the stencil;
  • Environment friendly;
  • Significant saving in stencil costs.
Pneumatic stencil frame LPKF ZelFlex ZP4 Specification:
Model ZelFlex ZP4 406x508 ZelFlex ZP4 457x584 ZelFlex ZP4 508x508/ ZelFlex ZP4 508x508х25 Slim
Part number 010280 010028 010027 /
Outside dimension, mm (inch) 406 x 508 (16" x 20") 457х584 (18''x 23'') 508 x 508 (20" x 20")
Inner dimension, mm (inch) 306 x 408 (12" x 16.1") 357 x 484 (14.1" x 19.1") 408 x 408 (16.1" x 16.1") / 428 x 428 (16.9" x 16.9")
Max print area, mm (inch) 286 x 388 (11.3" x 15.3") 337x 464 (13.3" x 18.3") 388 x 388 (15.3" x 15.3") / 408 x 408 (16.1" x 16.1")
Max squeegge width, mm (inch) 290 (11.4'') 340 (13,4'') 390 (15,4'') / 400 (15,7'')
Foil dimension, mm (inch) 368х470 (14.5''x 18.5'') 419х546 (16.5''x 21.5'') 470х470 (18.5''x 18.5'') / 473х473 (18.6''x 18.6'')
Thickness, mm 33 33 33 / 25
Weight, kg 4,2 4,8 4,7

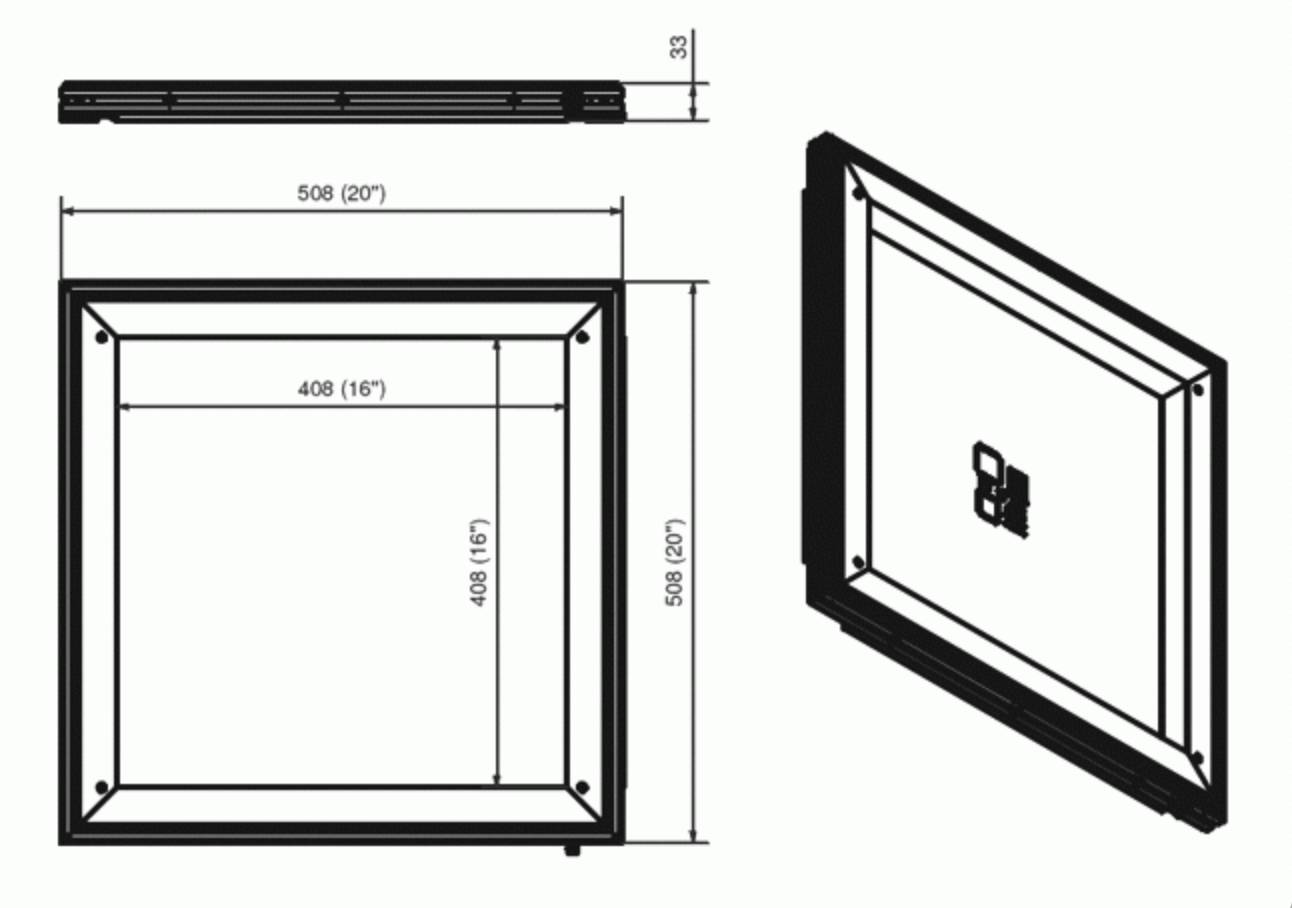

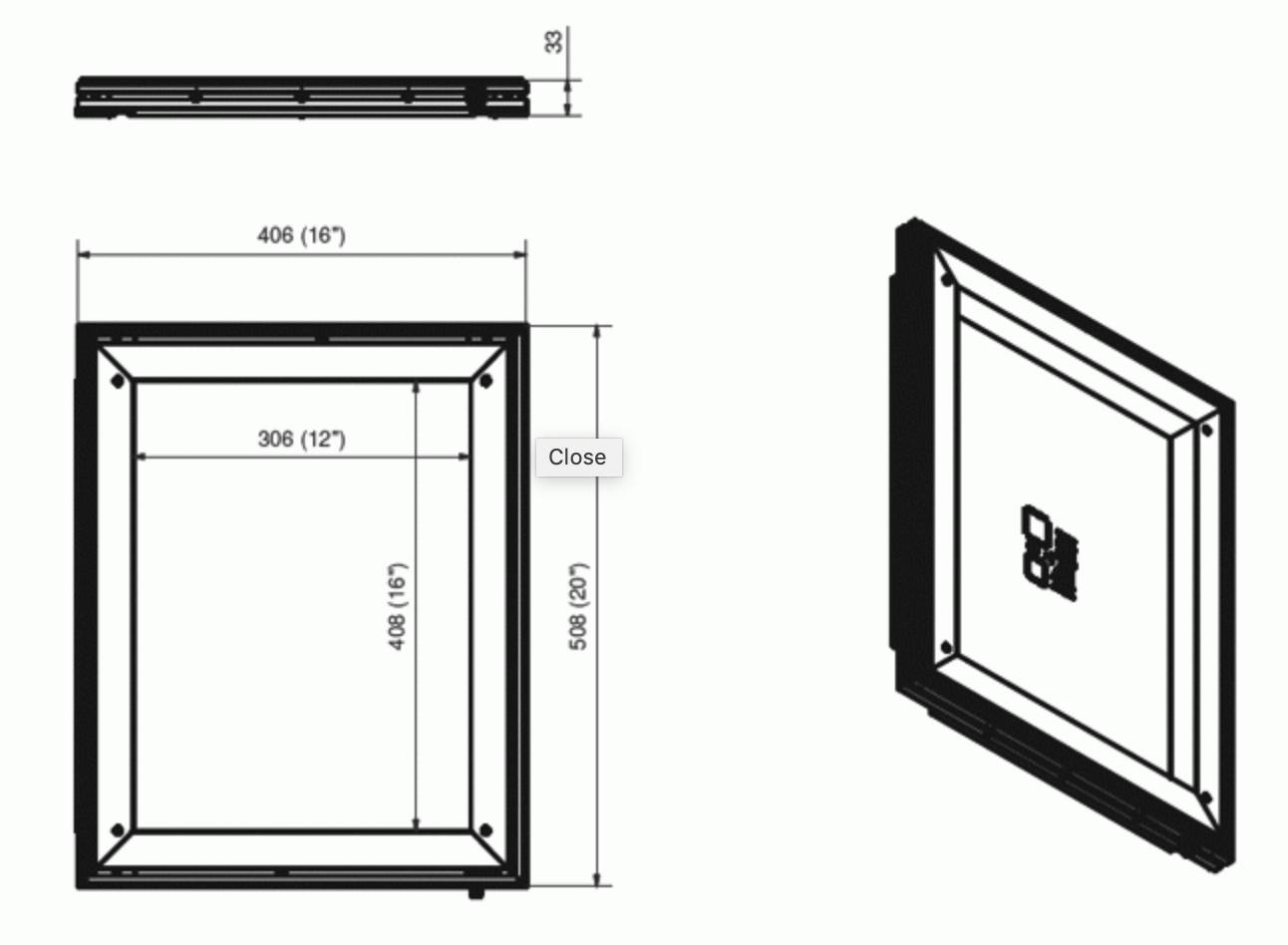

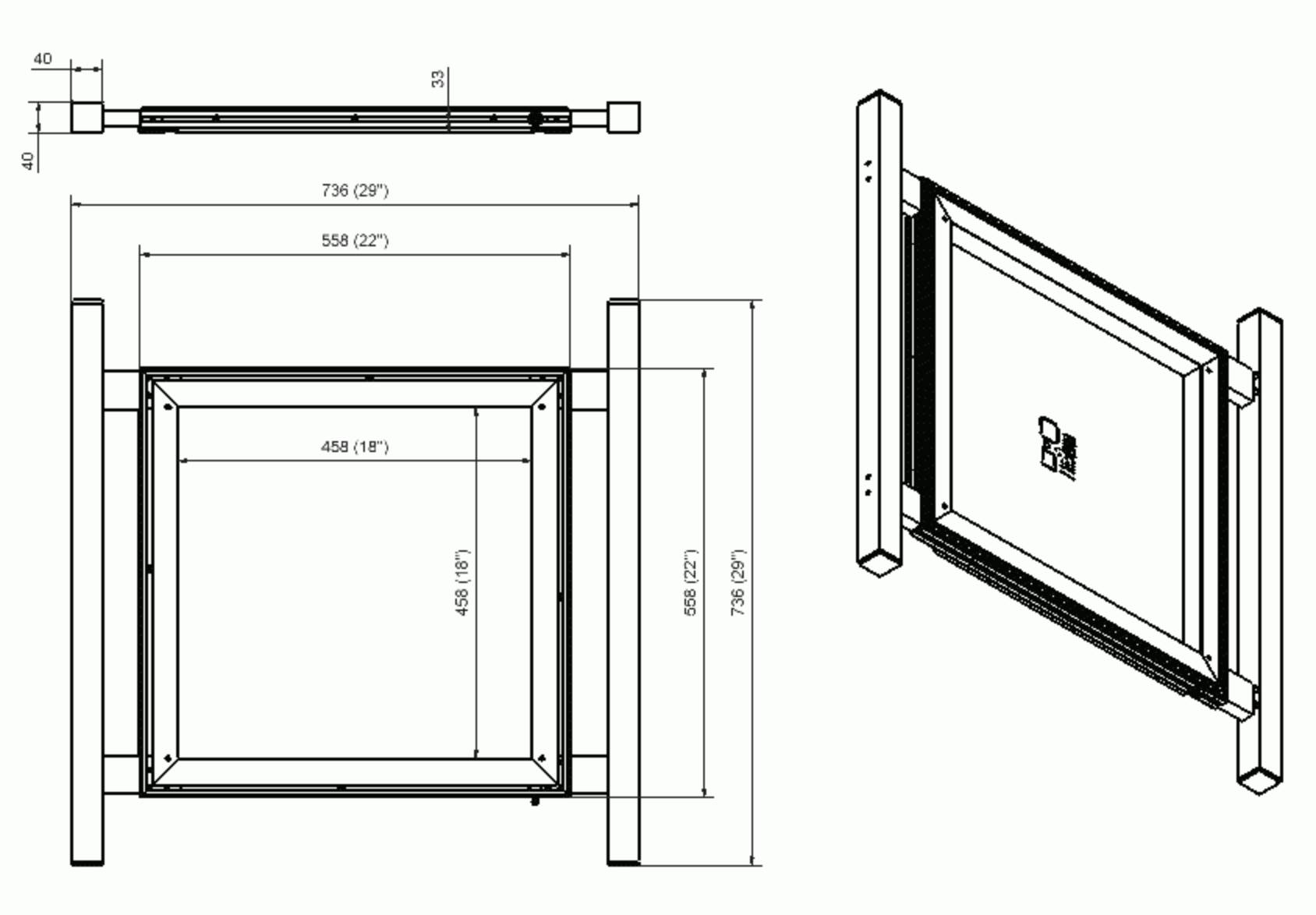

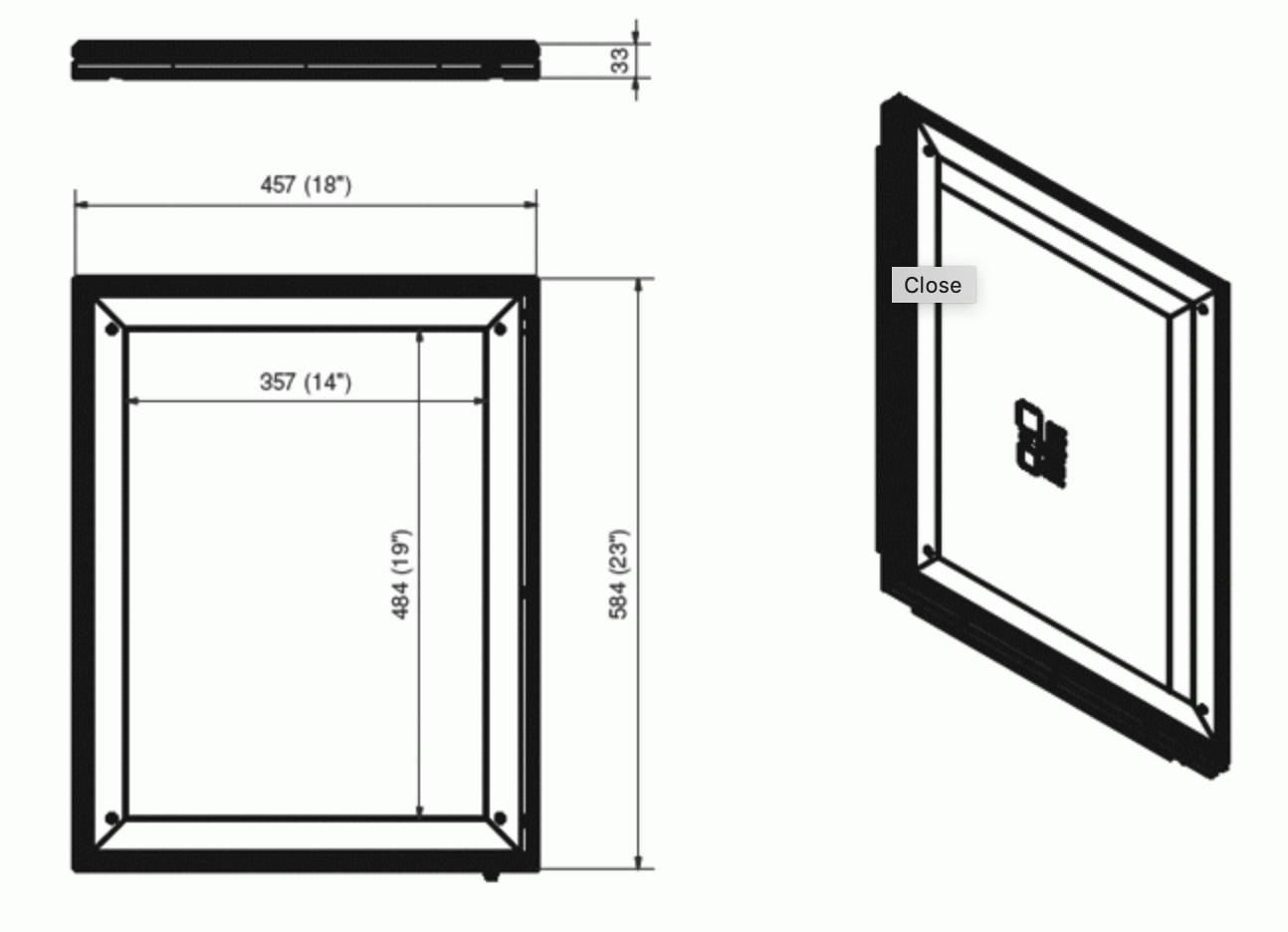

Scheme lpkf_zp4_scheme lpkf_zp4_457_scheme zp4_508x508
Compatibility with printers

Ask us!

 ESSEMTEC SP006 DEK ELAi,
ESSEMTEC SP002,
ESSEMTEC SP003

/ DEK ELAi,

MILARA MT2020
Model ZelFlex ZP4 558x558 ZelFlex ZP4 558x558 /584x558 ZelFlex ZP4 558x558 /736x736
Part number 010029 010181 010176
Outside dimension, mm (inch) 558 x 558 (22" x 22") 584 x 558 (23" x 22") 736 x 736 (29" x 29")
Inner dimension, mm (inch) 458 x 458 (18" x 18") 458 x 458 (18" x 18") 458 x 458 (18" x 18")
Max print area, mm (inch) 438 x 438 (17.2" x 17.2")  438 x 438 (17.2" x 17.2") 438 x 438 (17.2" x 17.2")
Max squeegge width, mm (inch) 440 (17.3'') 440 (17.3'') 440 (17.3'')
Foil dimension, mm (inch) 520 х 520 (20.5''x 20.5'') 520 х 520 (20.5''x 20.5'') 520 х 520 (20.5''x 20.5'')
Thickness, mm 33 25 40
Weight, kg 5,2 6,1 7,1

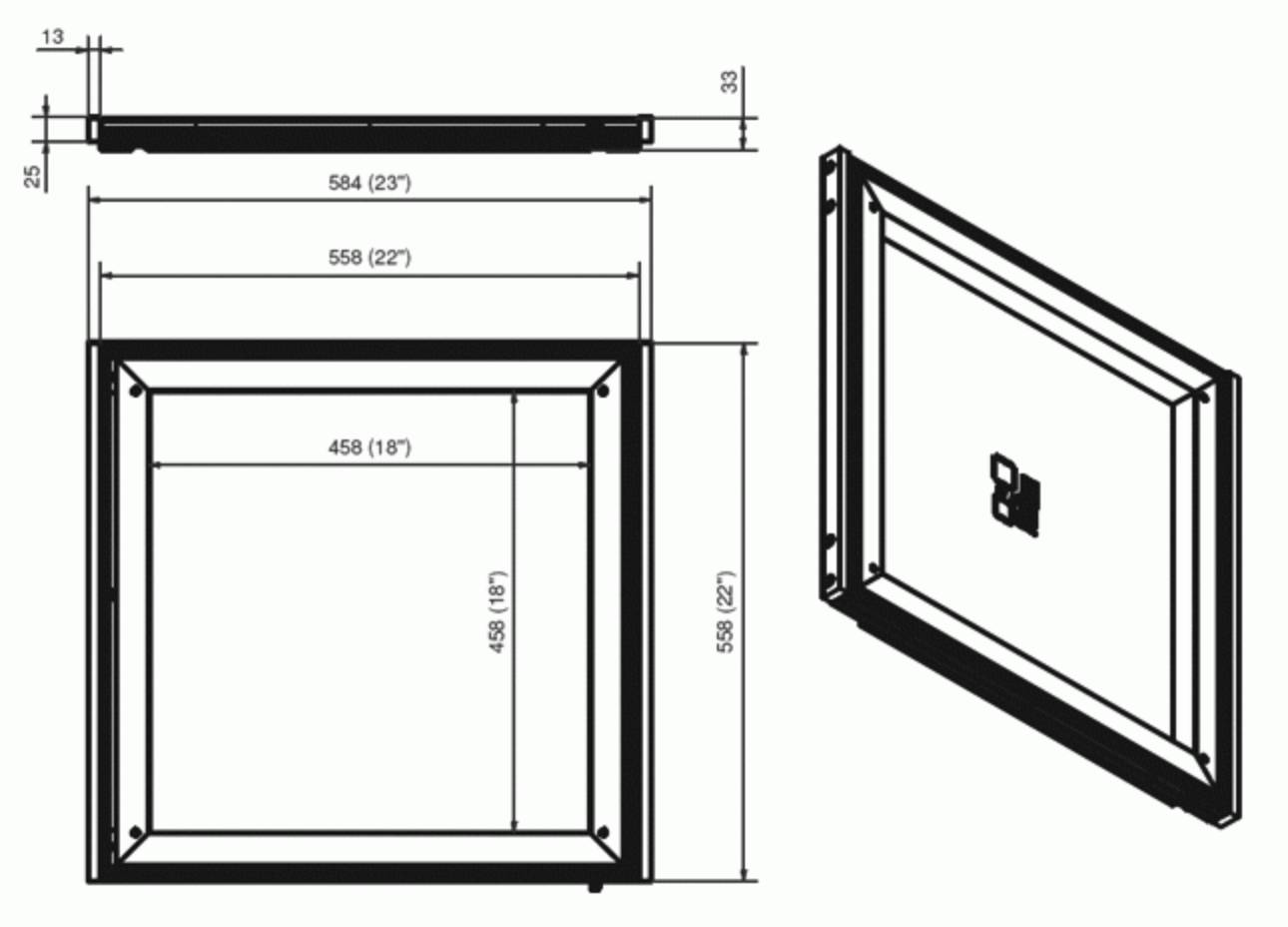

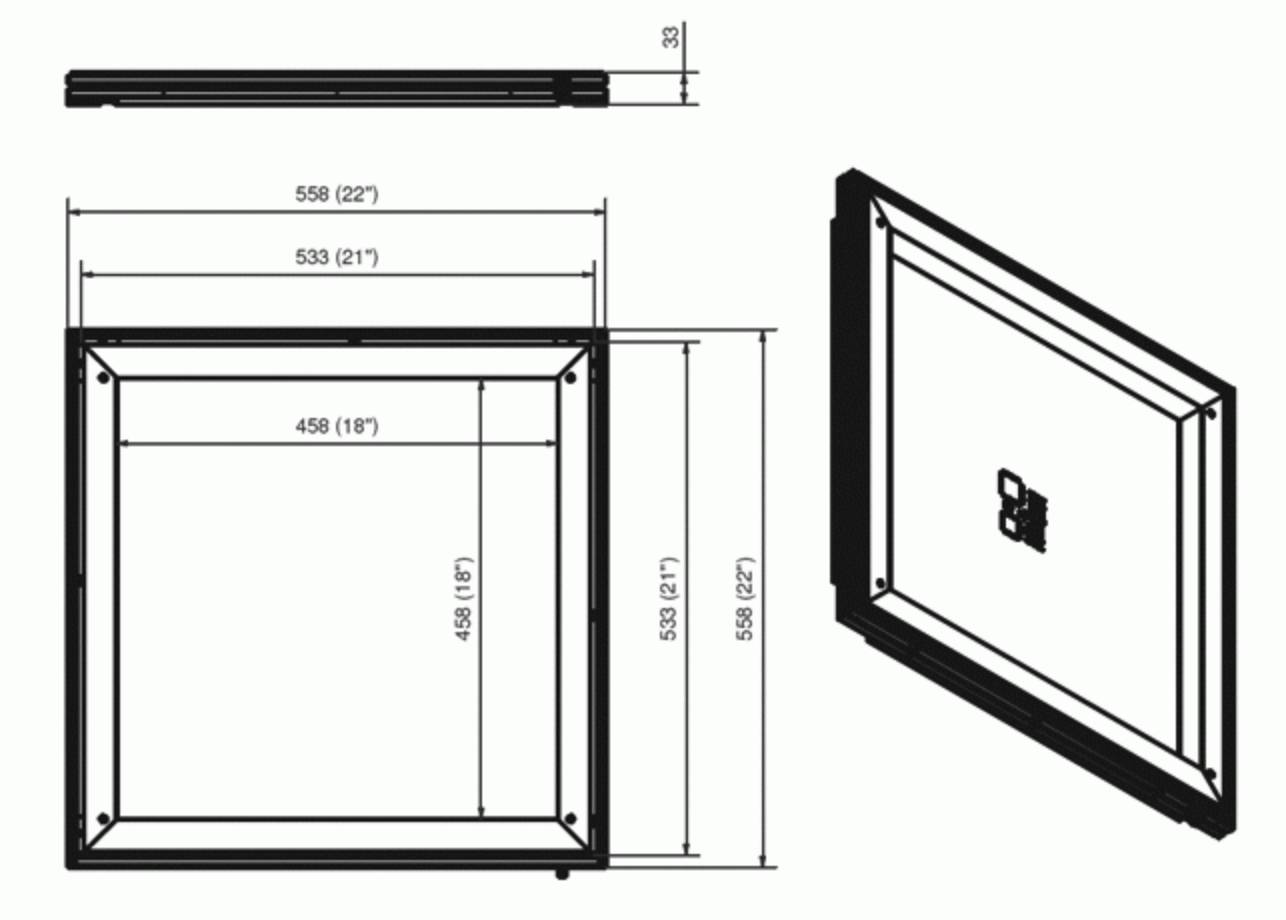

Scheme lpkf_zp4_558x558_scheme lpkf_zp4_584_scheme zp4_736x736_scheme
Compatibility with printers DEK260,
DEK ELAi,
TWS SR3100





ESSEMTEC SP100,
ESSEMTEC SP100-V,
ESSEMTEC SP200-AV,
ESSEMTEC SP200V

AUTOTRONIK-SMT BS1300,
AUTOTRONIK-SMT BS1400,
DEK 265,
DEK 288,
DEK ELAi,
DEK Galaxy,
DEK Horizon,
DEK Horizon 01i,
DEK Horizon 02i,
DEK Horizon 03i,
DEK Infinity,
DEK Viking,
DEK Vista,
EKRA E4,
EKRA E5,
EKRA E5-36,
EKRA E5DualCon,
EKRA E5HSP,
EKRA E5STS,
EKRA E5XL,
EKRA E5xs,
EKRA Titan,
EKRA X1-SL,
EKRA X3,
EKRA X4,
EKRA X5,
EKRA X6,
ESSEMTEC SP500,
HITACHI TP-200,
MILARA SemiTouch,
MILARA ST2929,
MILARA TP2929,
MPM AccuFlex,
MPM AP Excel,
MPM SPM,
MPM UltraFlex 3000,
MPM UltraFlex BBP,
MPM UP2000 HiE,
PANASONIC SP28P-DHU,
PANASONIC SPF,
PANASONIC SPP-G3,
REPRINT R29,
SAMSUNG TECHWIN SP450V
SPEEDPRINT SP880AVI,
SPEEDPRINT SPRINTavi29
Model ZelFlex ZP4 559x559x25 Slim ZelFlex ZP4 584x584 ZelFlex ZP4 584x584 with built-in pressure gauge
Part number 010375 010276 010342
Outside dimension, mm (inch) 559 x 559 (22" x 22") 584 x 584 (23" x 23") 584 x 584 (23" x 23")
Inner dimension, mm (inch) 479 x 479 (18.9" x 18.9") 484 x 484 (19.1" x 19.1") 484 x 484 (19.1" x 19.1")
Max print area, mm (inch) 459 x 459 (18.1" x 18.1") 464 x 464 (18.3" x 18.3") 464 x 464 (18.3" x 18.3")
Max squeegge width, mm (inch) 450 (17.7'') 470 (18.5'') 464 (18.3'')
Foil dimension, mm (inch) 524 х 524 (20.6''x 20.6'') 546 х 546 (21.5''x 21.5'') 546 х 546 (21.5''x 21.5'')
Thickness, mm 25 33 33
Weight, kg 3,5 5,3 5,3

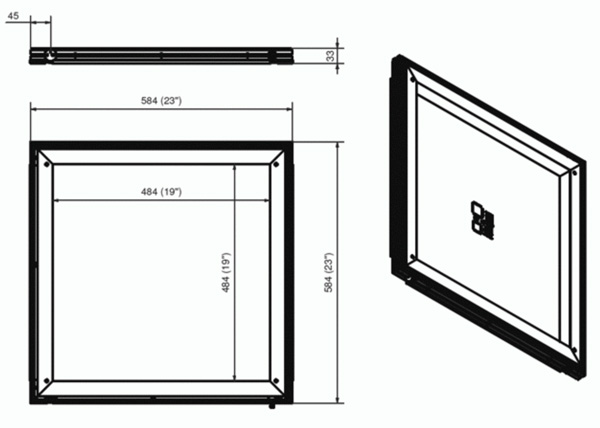

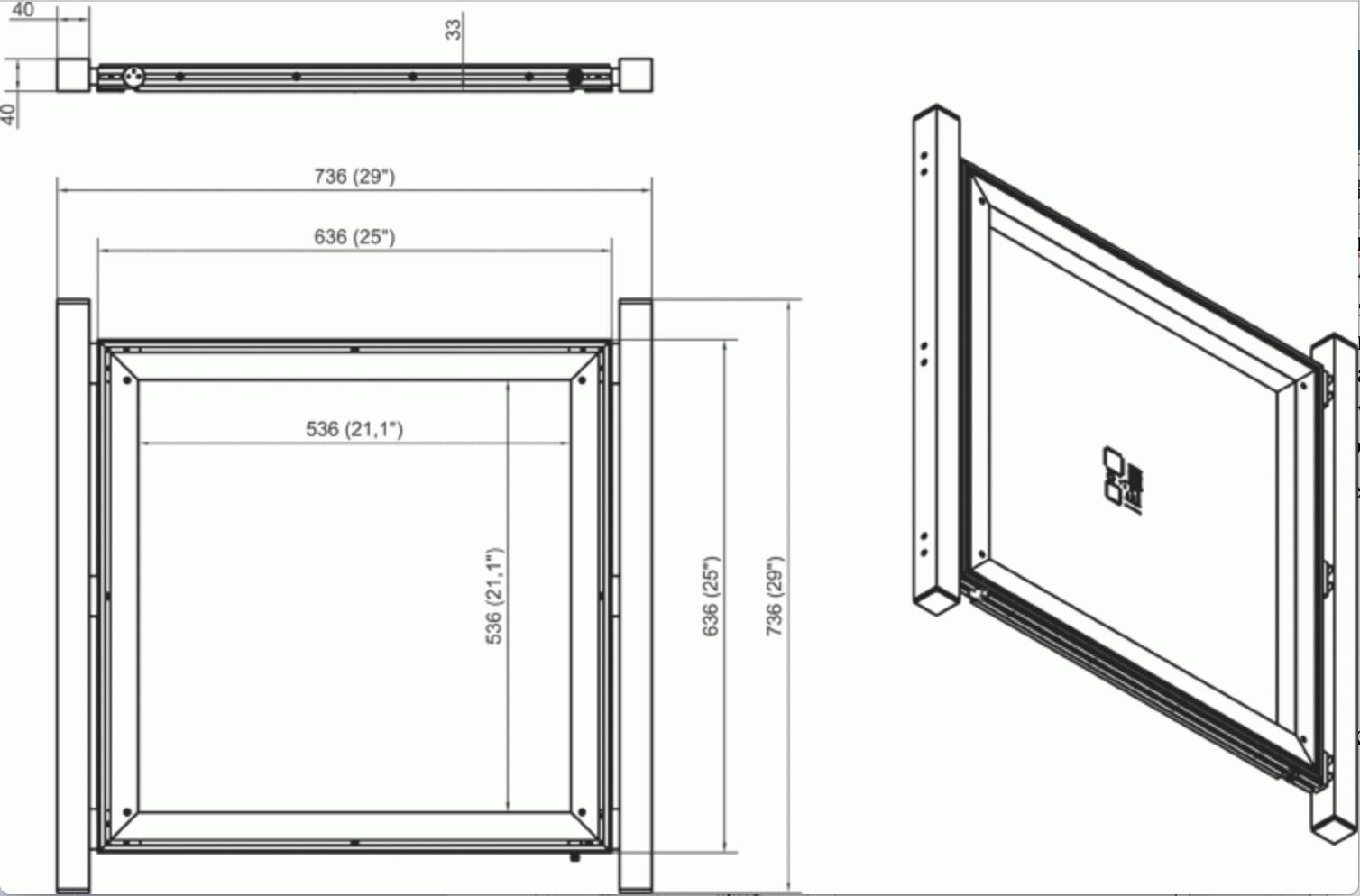

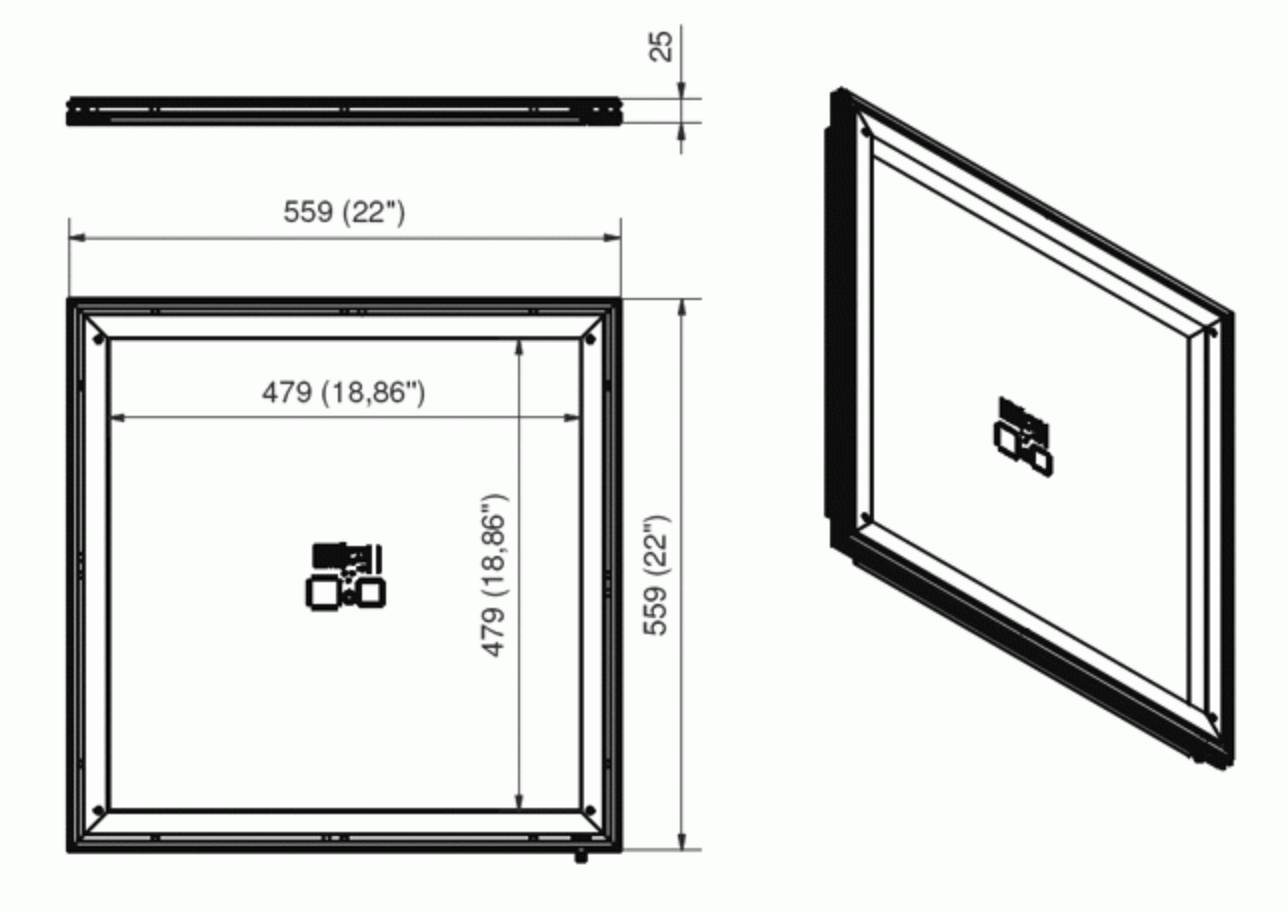

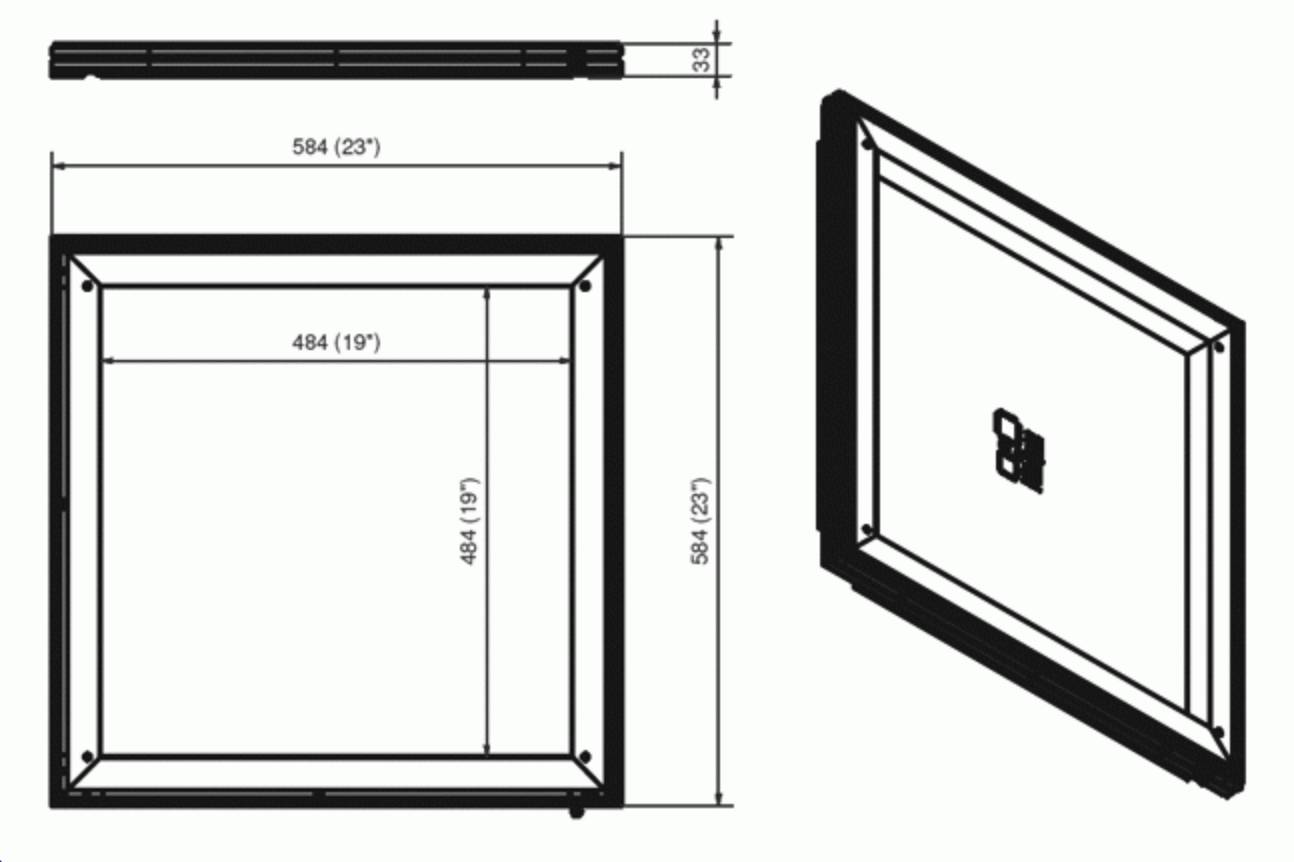

Scheme lpkf_zp4_559_scheme lpkf_zp4_584_scheme zp4_584x584 with manometr
Compatibility with printers

AUTOTRONIK-SMT BS1300,
AUTOTRONIK-SMT BS1400,
DEK248,
DEK 249,
DEK ELAi,
EKRA E1,
SPEEDPRINT SP200AVI,
TWS SR3100



DEK 260,
DEK ELAi,
KIStech KT300,
KIStech KT400,
MPM Accela,
TWS SR3100,
UNIPRINT A23,
UNIPRINT FA23,
UNIPRINT Go23
Model ZelFlex ZP4 584x584x25 Slim ZelFlex ZP4 584x584x25 Slim with built-in pressure gauge ZelFlex ZP4 584x584x25 / 736x736 Slim
Part number 010330 010438 010395
Outside dimension, mm (inch) 584 x 584 (23" x 23") 584 x 584 (23" x 23") 736 x 736 (29" x 29")
Inner dimension, mm (inch) 504 x 504 (19.8" x 19.8") 504 x 504 (19.8" x 19.8") 504 x 504 (19.8" x 19.8")
Max print area, mm (inch) 484 x 484 (19.1" x 19.1") 484 x 484 (19.1" x 19.1") 484 x 484 (19.1" x 19.1")
Max squeegge width, mm (inch) 480 (18.9'') 480 (18.9'') 480 (18.9'')
Foil dimension, mm (inch) 549 х 549 (21.6''x 21.6'') 549 х 549 (21.6''x 21.6'') 549 х 549 (21.6''x 21.6'')
Thickness, mm 25 25 40
Weight, kg 3,6 3,6 5,6

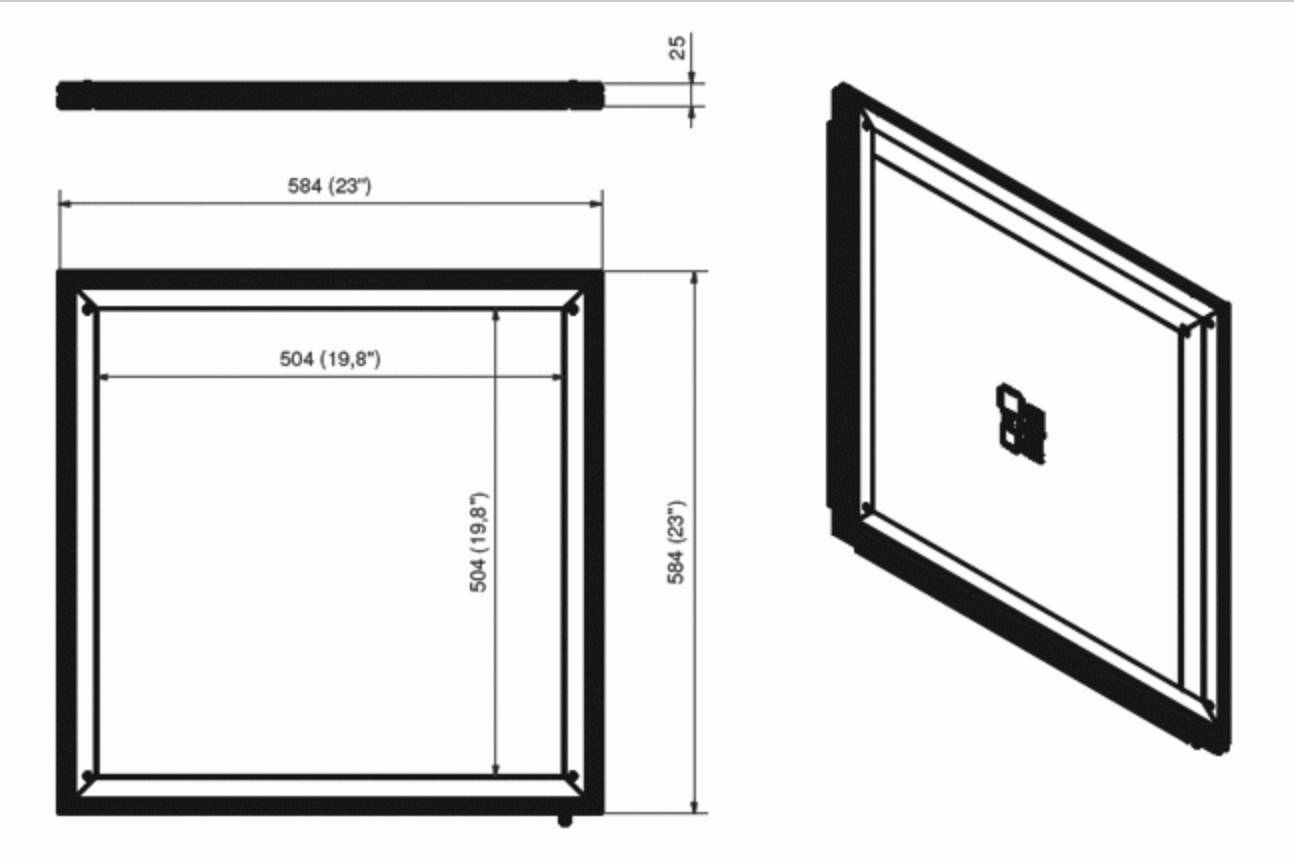

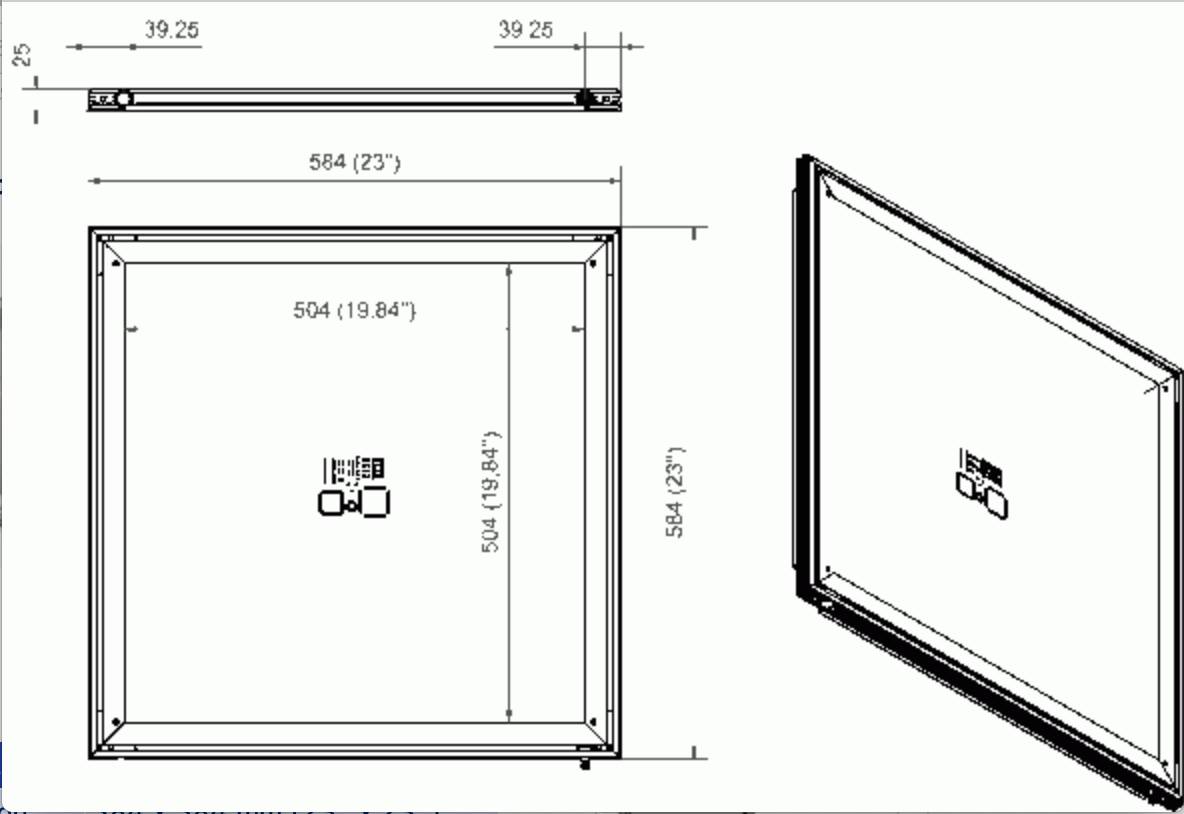

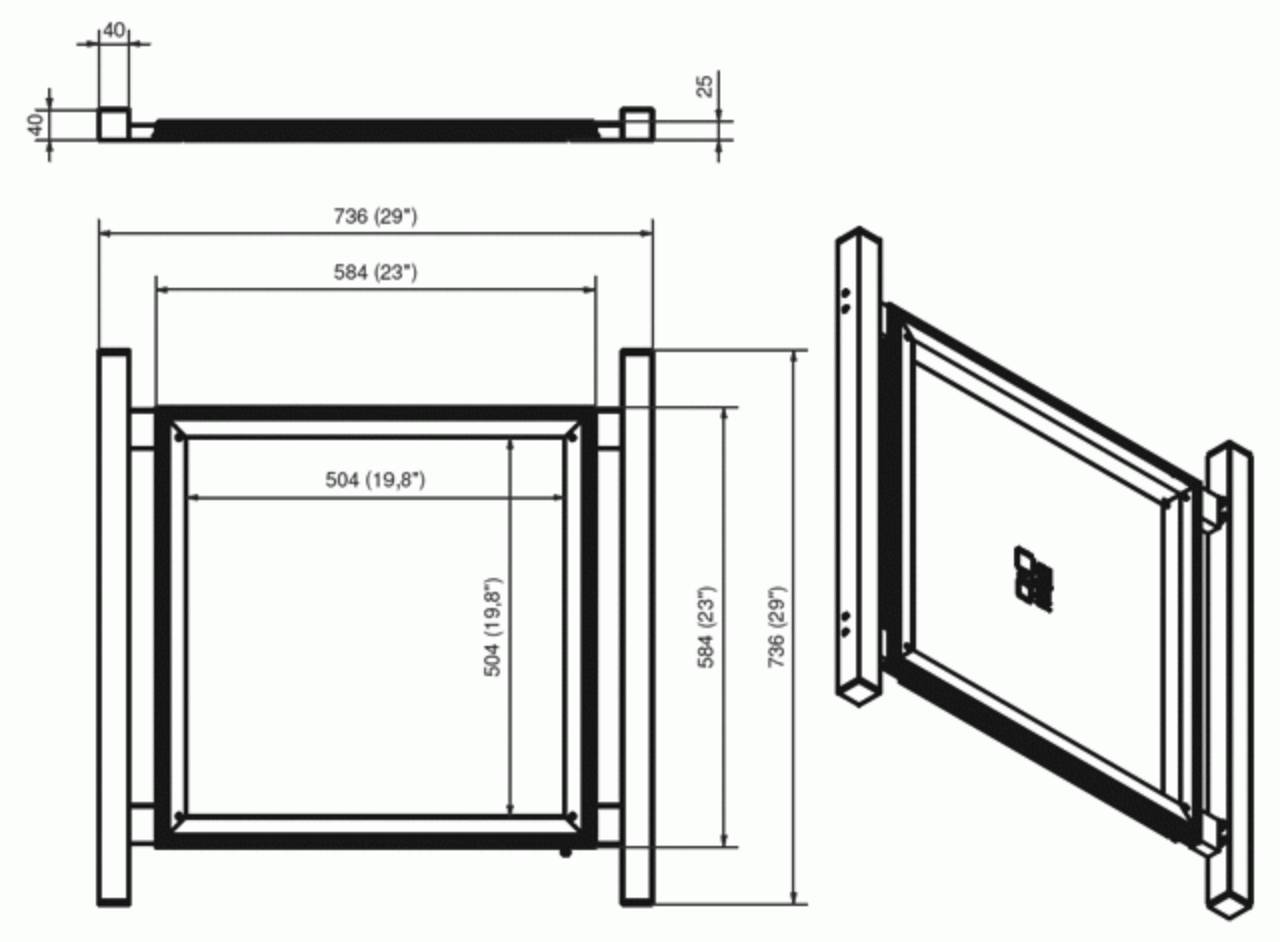

Scheme lpkf_zp4_584x584_scheme lpkf_zp4_584_slim_with_manometr_scheme zp4_736x736 slim
Compatibility with printers

AUTOTRONIK-SMT BS1300,
AUTOTRONIK-SMT BS1400,
DEK260,
DEK 288,
DEK ELAi,
DEK Galaxy,
DEK Horizon,
DEK Horizon 01i,
DEK Horizon 02i,
DEK Horizon 03i,
EKRA E1,
EKRA E4,
EKRA EKRAmat 40,
EKRA EKRAmat 45,
EKRA X1 (-S),
EKRA X1-SL,
EKRA X3,
EKRA X4,
EKRA X5,
EKRA X6,
ESSEMTEC SP100,
ESSEMTEC SP100-V,
ESSEMTEC SP200-AV,
ESSEMTEC SP200V,
HITACHI TP-200,
KIStech KT300,
KIStech KT400,
MILARA SemiTouch,
MPM Accela,
MPM UP100,
PBT MOTOPRINT-AVL,
PBT MOTOPRINT-AVS,
PBT UNIPRINT-P*,
SIGMAPRINT BENCHMARK (90),
SIGMAPRINT MICROFLEX,
SPEEDPRINT SP200AVI,
SPEEDPRINT SP200e,
SPEEDPRINT SP880AVI,
SPEEDPRINT SPRINTavi29,
TWS SR3100,
UNIPRINT A23,
UNIPRINT FA23,
UNIPRINT Go23,
UNIPRINT Go3



DEK 265,
DEK 288,
DEK ELAi,
DEK Galaxy,
DEK Horizon,
DEK Horizon 01i,
DEK Horizon 02i,
DEK Horizon 03i,
DEK Infinity,
DEK Viking,
EKRA E4,
EKRA E5,
EKRA E5-36,
EKRA E5DualCon,
EKRA E5HSP,
EKRA E5STS,
EKRA E5XL,
EKRA E5xs,
EKRA X1-SL,
EKRA X3,
EKRA X4,
EKRA X5,
EKRA X6,
ESSEMTEC SP500,
HITACHI TP-200,
MILARA SemiTouch,
MILARA ST2929,
MILARA TP2929,
MPM Accela,
MPM AccuFlex,
MPM AP Excel,
MPM SPM,
MPM UltraFlex 3000,
MPM UltraFlex BBP,
MPM UP2000 HiE,
PANASONIC SP28P-DHU,
PANASONIC SPF,
PANASONIC SPP-G3,
REPRINT R29,
SAMSUNG TECHWIN SMP200,
SAMSUNG TECHWIN SMP400,
SAMSUNG TECHWIN SP450V
Model ZelFlex ZP4 636x636 ZelFlex ZP4 636x636 / 736x736 ZelFlex ZP4 636x636 / 736x736 with built-in pressure gauge
Part number 010030 010189 010294
Outside dimension, mm (inch) 636 x 636 (25" x 25") 736 x 736 (29" x 29") 736 x 736 (29" x 29")
Inner dimension, mm (inch) 536 x 536 (21.1" x 21.1") 536 x 536 (21.1" x 21.1") 536 x 536 (21.1" x 21.1")
Max print area, mm (inch) 516 x 516 (20.3" x 20.3") 516 x 516 (20.3" x 20.3") 516 x 516 (20.3" x 20.3")
Max squeegge width, mm (inch) 520 (20.5'') 520 (20.5'') 520 (20.5'')
Foil dimension, mm (inch) 598 х 598 (23.5''x 23.5'') 598 х 598 (23.5''x 23.5'') 598 х 598 (23.5''x 23.5'')
Thickness, mm 33 40 40
Weight, kg 5,8 7,2 7,2

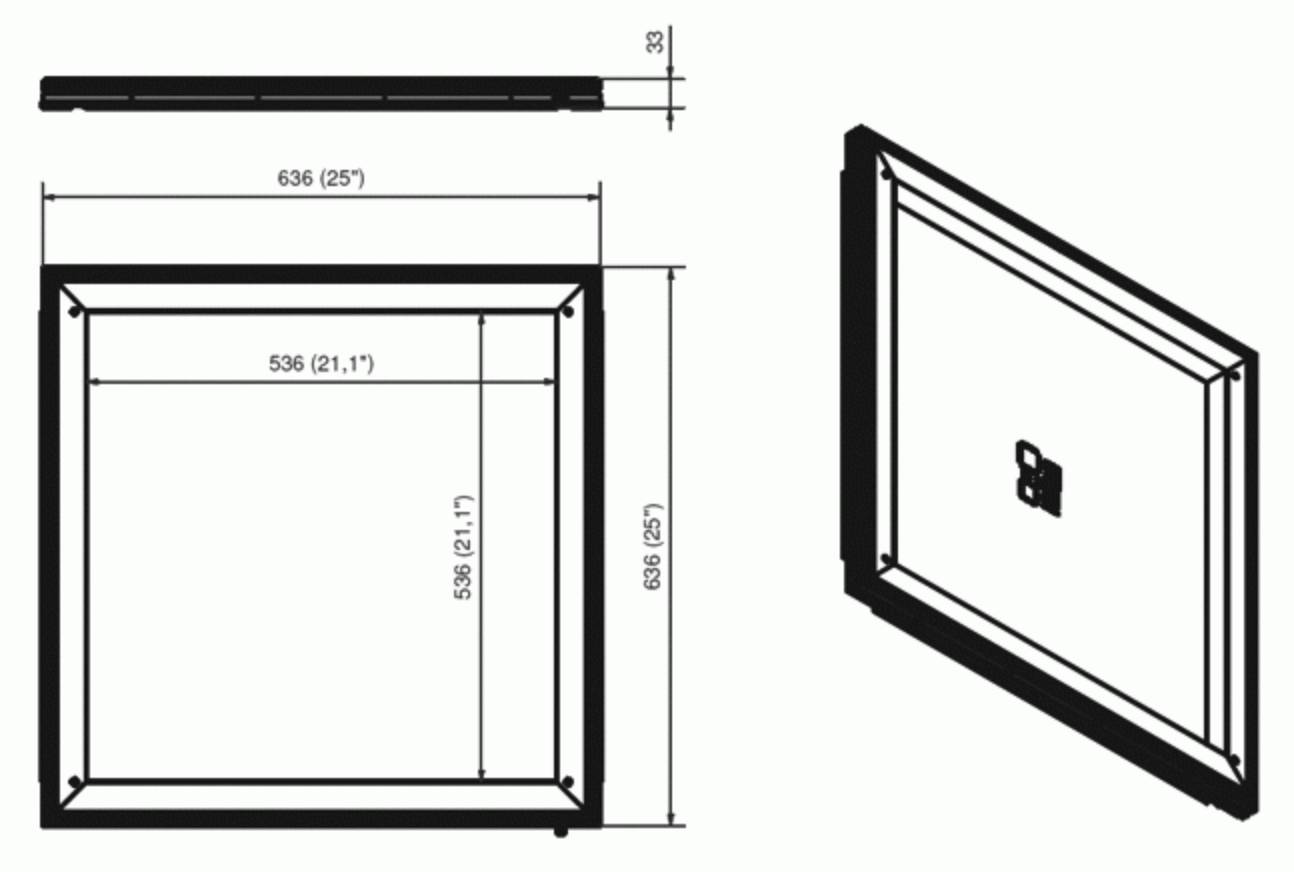

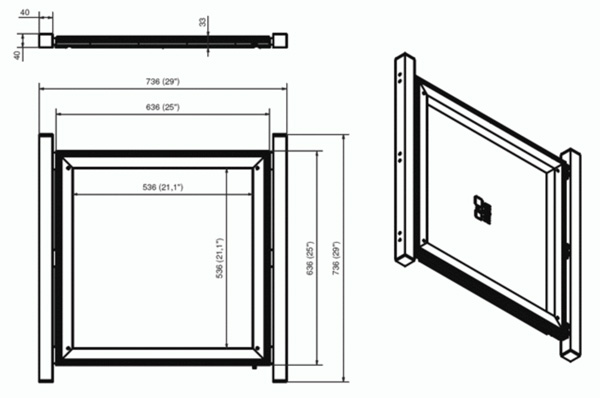

Scheme lpkf_zp4_636x636_scheme lpkf_zp4_636x636_scheme zp4_736x736 with manometr
Compatibility with printers

DEK ELAi,
DEK Horizon 01i,
DEK Horizon 02i,
DEK Horizon 03i,
SPEEDPRINT SP880AVI,
SPEEDPRINT SPRINTavi29,
TWS SR3100,
UNIPRINT A29

AUTOTRONIK-SMT BS1300,
AUTOTRONIK-SMT BS1400,
DEK265,
DEK 288,
DEK ELAi,
DEK Galaxy,
DEK Horizon,
DEK Horizon 01i,
DEK Horizon 02i,
DEK Horizon 03i,
DEK Infinity,
DEK Viking,
DEK Vista,
EKRA E4,
EKRA E5,
EKRA E5-36,
EKRA E5DualCon,
EKRA E5HSP,
EKRA E5STS,
EKRA E5XL,
EKRA E5xs,
EKRA EKRAmat 45,
EKRA Titan,
EKRA X1-SL,
EKRA X3,
EKRA X4,
EKRA X5,
EKRA X6,
ESSEMTEC SP500,
HITACHI TP-200,
MILARA SemiTouch,
MILARA ST2929,
MILARA TP2929,
MPM Accela,
MPM AccuFlex,
MPM AP Excel,
MPM SPM,
MPM UltraFlex 3000,
MPM UltraFlex BBP,
MPM UP2000 HiE,
PANASONIC SP28P-DHU,
PANASONIC SPF,
PANASONIC SPP-G3,
REPRINT R29,
SAMSUNG TECHWIN SMP200,
SAMSUNG TECHWIN SMP400,
SAMSUNG TECHWIN SP450V
SPEEDPRINT SP880AVI,
SPEEDPRINT SPRINTavi29,
UNIPRINT A29
Model ZelFlex ZP4 736x636 / 736x736 ZelFlex ZP4 636x736 / 736x736 ZelFlex ZP4 736x736
Part number 010209 010155 010031
Outside dimension, mm (inch) 736 x 736 (29" x 29") 736 x 736 (29" x 29") 736 x 736 (29" x 29")
Inner dimension, mm (inch) 636 x 536 (25" x 21.1") 536 x 636 (21.1" x 25") 636 x 636 (25" x 25")
Max print area, mm (inch) 616 x 516 (24.3" x 20.3") 516 x 616 (20.3" x 24.3") 616 x 616 (24.3" x 24.3")
Max squeegge width, mm (inch) 620 (24.4'') 520 (20.5'') 620 (24.4'')
Foil dimension, mm (inch) 696 х 598 (27.4''x 23.5'') 598 х 698 (23.5''x 27.5'') 698 х 698 (27.5''x 27.5'')
Thickness, mm 40 40 33
Weight, kg 7,7 7,7 6,7

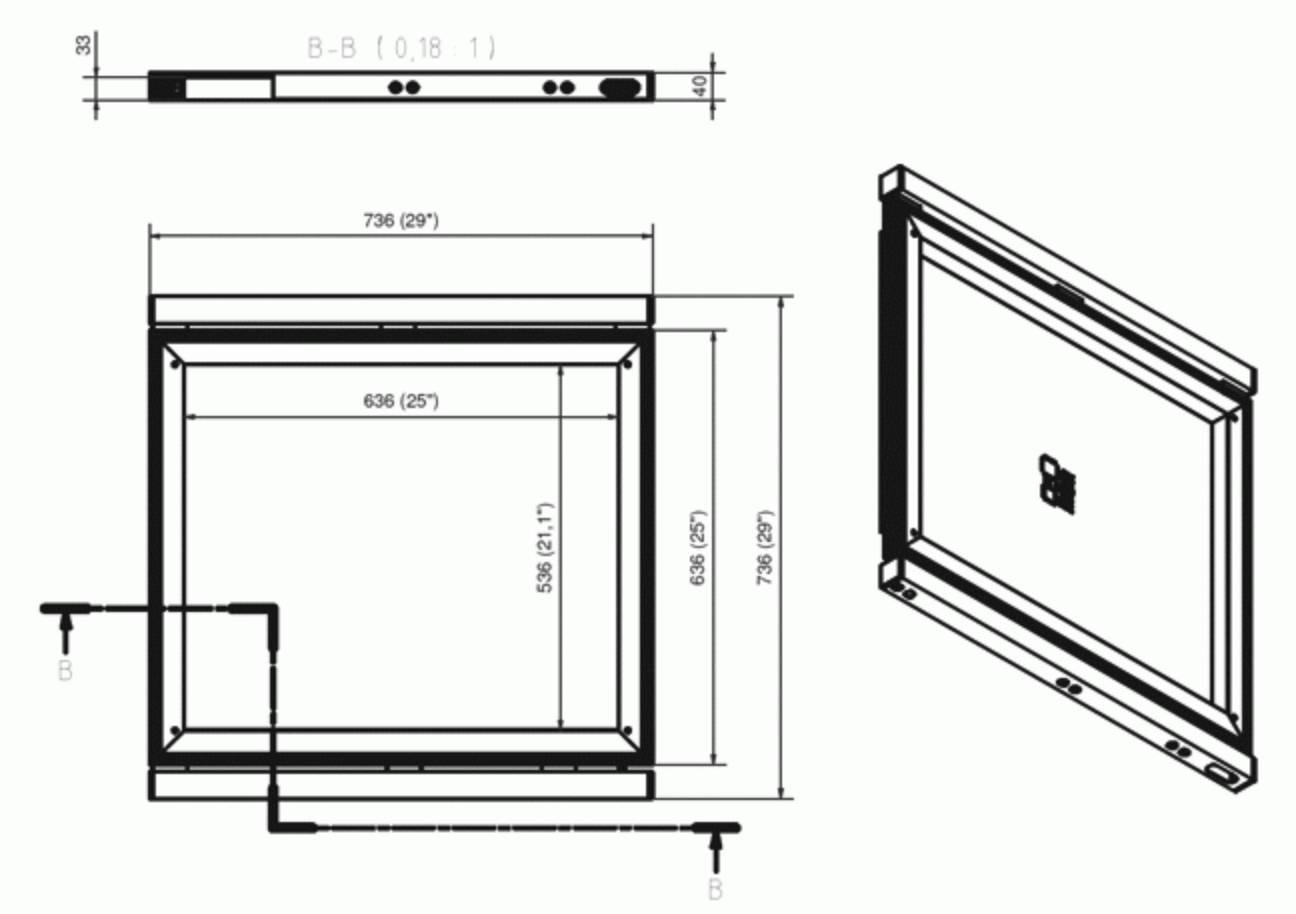

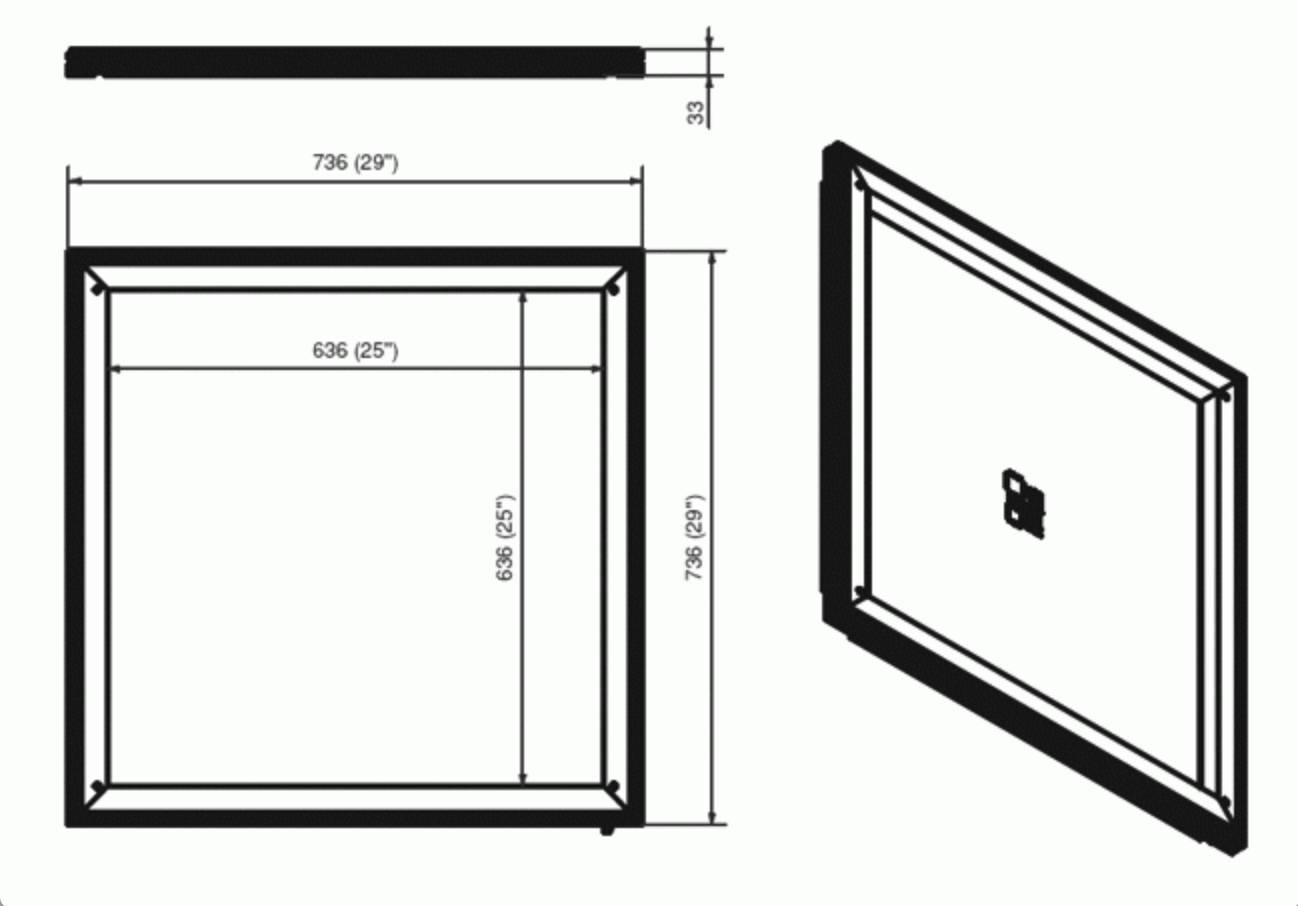

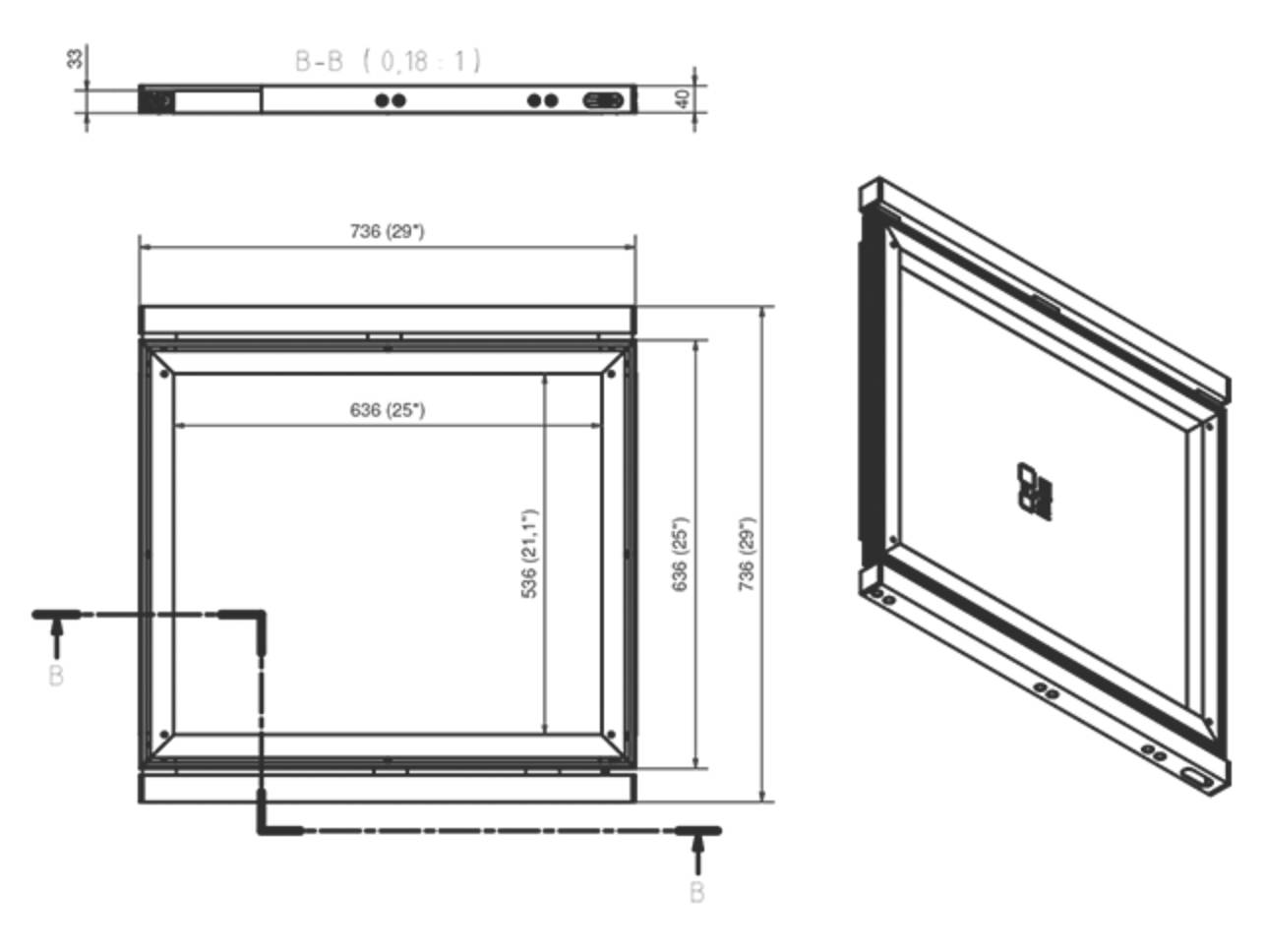

Scheme lpkf_zp4_736x636_scheme lpkf_zp4_636x736_scheme zp4_736x736
Compatibility with printers

UNIPRINT Go29

AUTOTRONIK-SMT BS1300,
AUTOTRONIK-SMT BS1400,
DEK265,
DEK 288,
DEK ELAi,
DEK Galaxy,
DEK Horizon,
DEK Horizon 01i,
DEK Horizon 02i,
DEK Horizon 03i,
DEK Infinity,
DEK Viking,
DEK Vista,
EKRA E4,
EKRA E5,
EKRA E5-36,
EKRA E5DualCon,
EKRA E5HSP,
EKRA E5STS,
EKRA E5XL,
EKRA E5xs,
EKRA EKRAmat 45,
EKRA Titan,
EKRA X1-SL,
EKRA X3,
EKRA X4,
EKRA X5,
EKRA X6,
ESSEMTEC SP500,
HITACHI TP-200,
MILARA SemiTouch,
MILARA ST2929,
MILARA TP2929,
MPM Accela,
MPM AccuFlex,
MPM AP Excel,
MPM SPM,
MPM UltraFlex 3000,
MPM UltraFlex BBP,
MPM UP2000 HiE,
PANASONIC SP28P-DHU,
PANASONIC SPF,
PANASONIC SPP-G3,
REPRINT R29,
SAMSUNG TECHWIN SP450V
SPEEDPRINT SP880AVI,
SPEEDPRINT SPRINTavi29,
UNIPRINT A29

AUTOTRONIK-SMT BS1300,
AUTOTRONIK-SMT BS1400,
DEK265,
DEK 288,
DEK ELAi,
DEK Galaxy,
DEK Horizon,
DEK Horizon 01i,
DEK Horizon 02i,
DEK Horizon 03i,
DEK Infinity,
DEK Viking,
DEK Vista,
EKRA E4,
EKRA E5,
EKRA E5-36,
EKRA E5DualCon,
EKRA E5HSP,
EKRA E5STS,
EKRA E5XL,
EKRA E5xs,
EKRA EKRAmat 45,
EKRA Titan,
EKRA X1-SL,
EKRA X3,
EKRA X4,
EKRA X5,
EKRA X6,
ESSEMTEC SP500,
HITACHI TP-200,
MILARA SemiTouch,
MILARA ST2929,
MILARA TP2929,
MPM Accela,
MPM AccuFlex,
MPM AP Excel,
MPM SPM,
MPM UltraFlex 3000,
MPM UltraFlex BBP,
MPM UP2000 HiE,
PANASONIC SP28P-DHU,
PANASONIC SPF,
PANASONIC SPP-G3,
REPRINT R29,
SAMSUNG TECHWIN SP450V
SPEEDPRINT SP880AVI,
SPEEDPRINT SPRINTavi29,
UNIPRINT A29,
UNIPRINT Go29
Model ZelFlex ZP4 650x550x25 Slim with built-in pressure gauge ZelFlex ZP4 650x550 with built-in pressure gauge
Part number 010356 ?
Outside dimension, mm (inch) 650 x 550 (25.6" x 21.7") 650 x 550 (25.6" x 21.7")
Inner dimension, mm (inch) 570 x 470 (22.4" x 18.5") 550 x 450 (21.7" x 17.7")
Max print area, mm (inch) 550 x 450 (21.7" x 17.7") 530 x 430 (20.9" x 16.9")
Max squeegge width, mm (inch) 550 (21.7'') 540 (21.3'')
Foil dimension, mm (inch) 615 х 515 (24.2''x 20.6'') 612 х 512 (24.1''x 20.2'')
Thickness, mm 25 33
Weight, kg 3,8 6,7

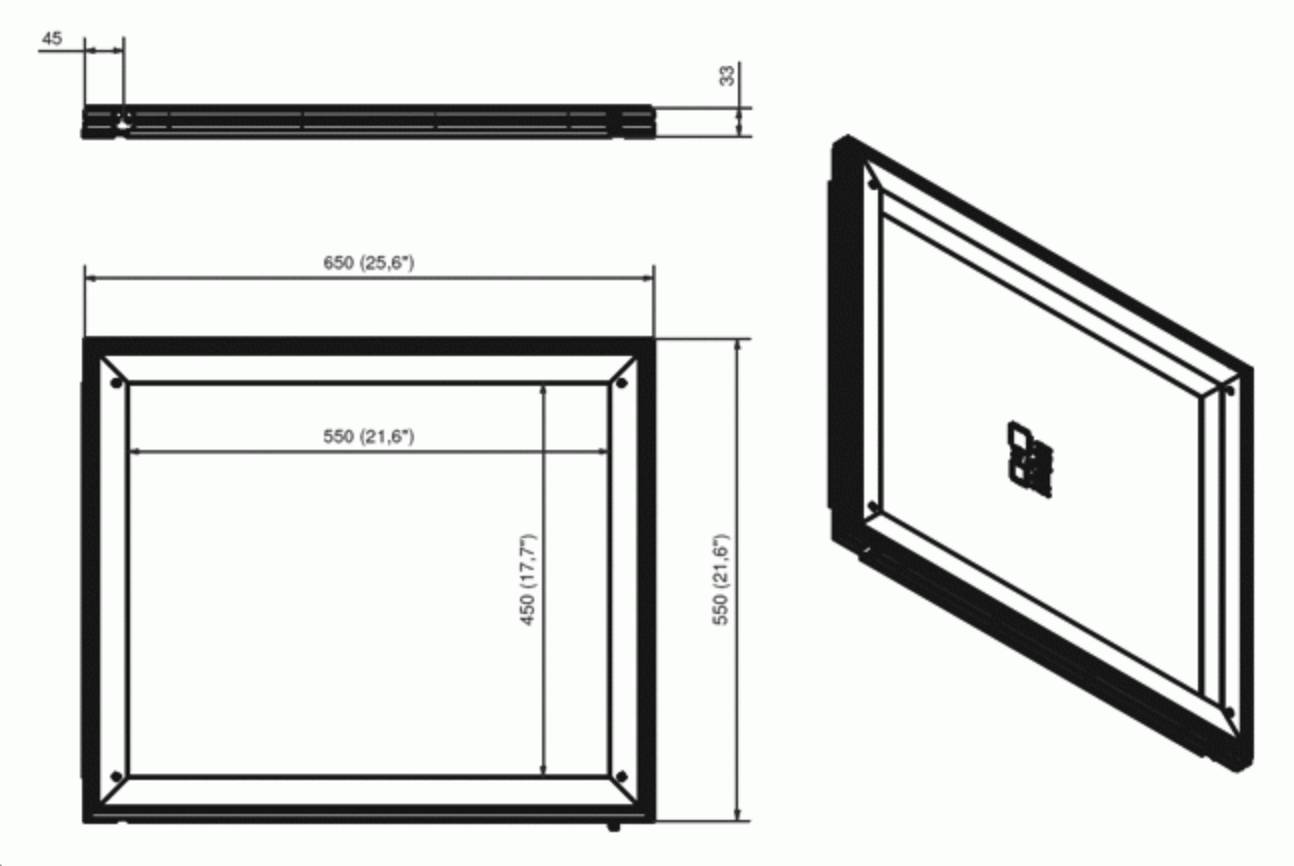

Scheme lpkf_zp4_636x736_scheme zp4_650x550
Compatibility with printers I-PULSE P4 (KHT-000),
PANASONIC SPG (NM-EJP6A),
YAMAHA YSP (KHT-000)


HITACHI TP-200,
I-PULSE P4 (KHT-000),
PANASONIC SPG (NM-EJP6A),
YAMAHA YSP (KHT-000)
Download LPKF ZelFlex ZP4 description

Related products:

LPKF ZelFlex Protect

Pneumatic fast clamping frame LPKF ZelFlex Protect

LPKF ZelFlex QR

Mechanical stretching frame LPKF ZelFlex QR

View all: LPKF ZelFlex frames
This site uses cookies and services to collect technical data of visitors (data about IP address, location, etc.) to ensure performance and improve the quality of service. By continuing to use our site, you automatically agree to the use of these technologies.
Agree Privacy Policy
Price request
Pneumatic stencil frame LPKF ZelFlex ZP4

By sending this form I agree to the Privacy Policy

arrowup
