Mechanical stretching frame LPKF ZelFlex QR
Outside dimension
10,5" x 15,0"~ 16,0" x 20,0"
Inner dimension
8,4" x 10,6" ~ 13,9" x 15,7"
Max print area
12" x 14,1"
Thickness
32 mm
Shipping
Payment
TimelineWe will arrange delivery to the named place of the location. The shipping terms are subject to agreement.
We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).
Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.
Description:

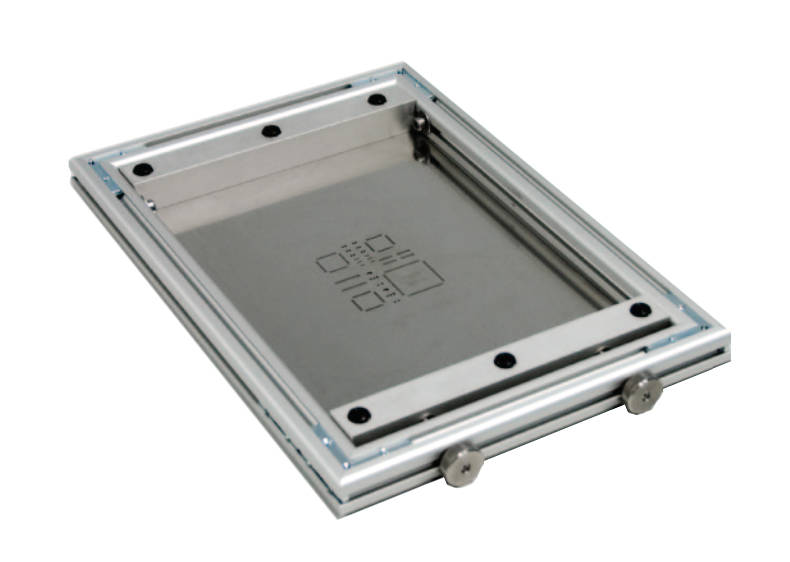

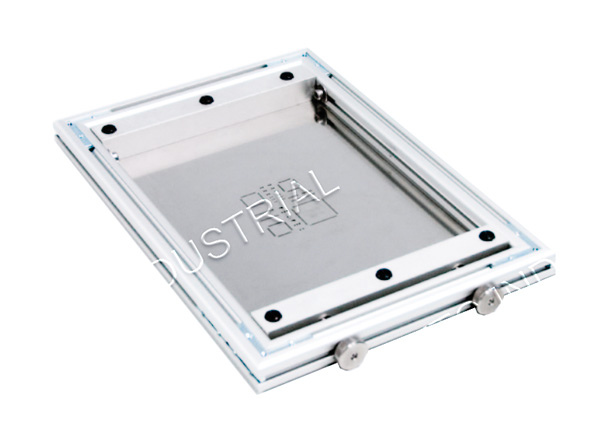

LPKF ZelFlex QR — mechanical stretching frame that allows direct and quick clamping of the SMT stencils. This double-sided mechanical frame is especially suitable for smaller printers and it can be delivered in different dimensions.
Main features:
- Suitable for many printing machines;
- Direct clamping of the SMT stencils;
- Zelflex tension regulators provides an optimal tension of the stencil;
- Quick and simple exchange of stencils;
- Cost effective.
Mechanical stretching frame LPKF ZelFlex QR specification:
| Model | ZelFlex QR 266x380 | ZelFlex QR 362x480 | ZelFlex QR 406x508 |
| Part number | 010472 | 010473 | 010412 |
| Outside dimension, mm (inch) | 266 x 380 (10.5" x 15") | 362х480 (14.3''x 18.9'') | 406 x 508 (16" x 20") |
| Inner dimension, mm (inch) | 214 x 270 (8.4" x 10.6") | 310 x 370 (12.2" x 14.6") | 354 x 398 (13.9" x 15.7") |
| Max print area, mm (inch) | 164 x 230 (6.5" x 9.1") | 260 x 330 (10.2" x 13") | 304 x 358 (12" x 14.1") |
| Max squeegge width, mm (inch) | 180 (7.1'') | 280 (11'') | 320 (12,6'') |
| Foil dimension, mm (inch) | 214 х 310 (8,4''x 12,2'') | 310х410 (12,2''x 16,1'') | 354 x 438 (13.9" x 17.2") |
| Thickness, mm | 32 | 32 | 32 |
| Weight, kg | 4,3 | 6,7 | 8,3 |
| Image |  |
 |
 |
