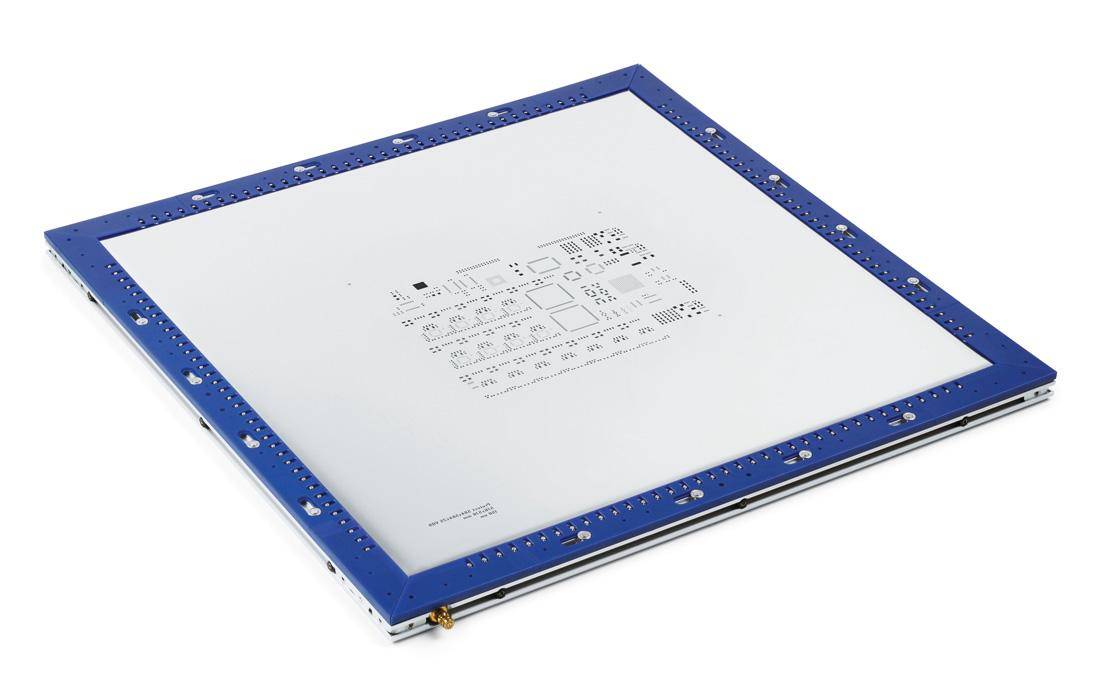

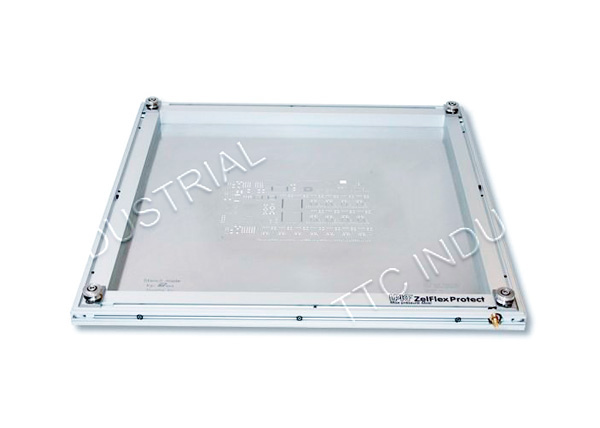

LPKF ZelFlex PROTECT — pneumatic fast clamping frame with an innovative protecting system. It has a unique design that prevents possible operator injuries on the sharp stencil edges. Retains all advantages of standard ZelFlex systems.
- Unique protective solution for the stencil based on the patented sub-frame;
- Simplified handling, washing and archiving;
- Rapid exchange of stencils;
- Operator safety - the metal stencil is permanently fixed into the protective frame;
- Air supply unit.

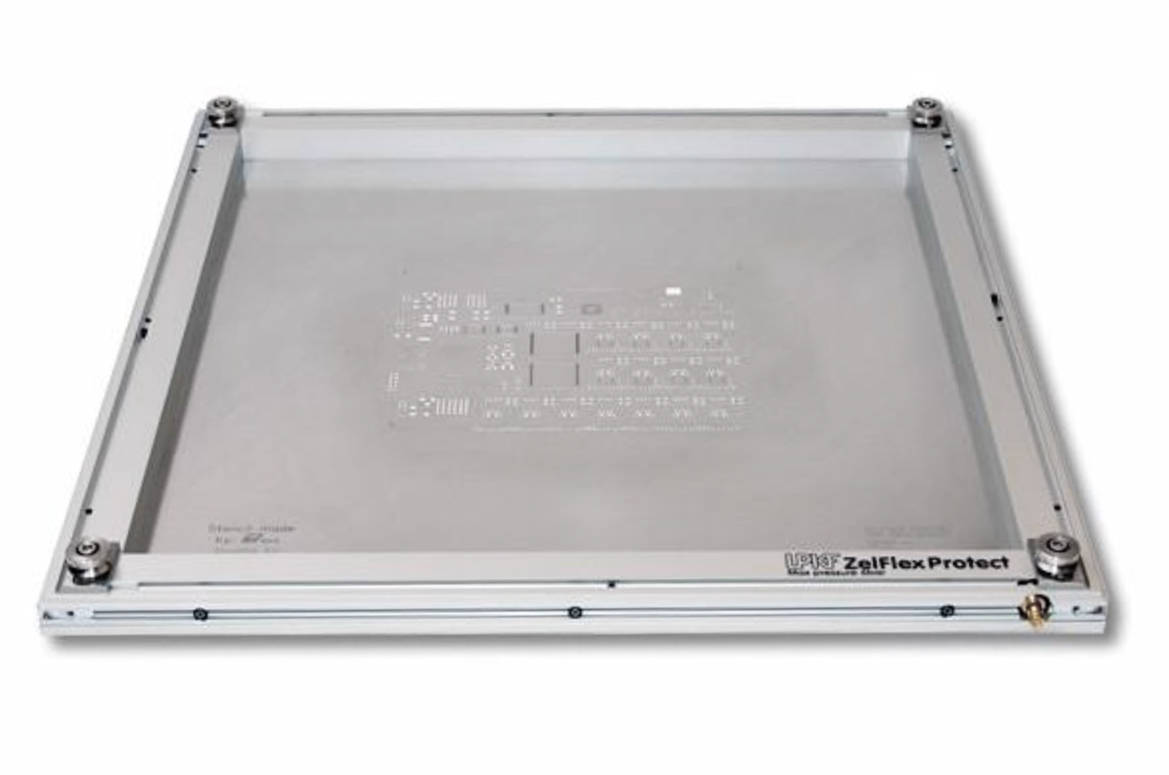

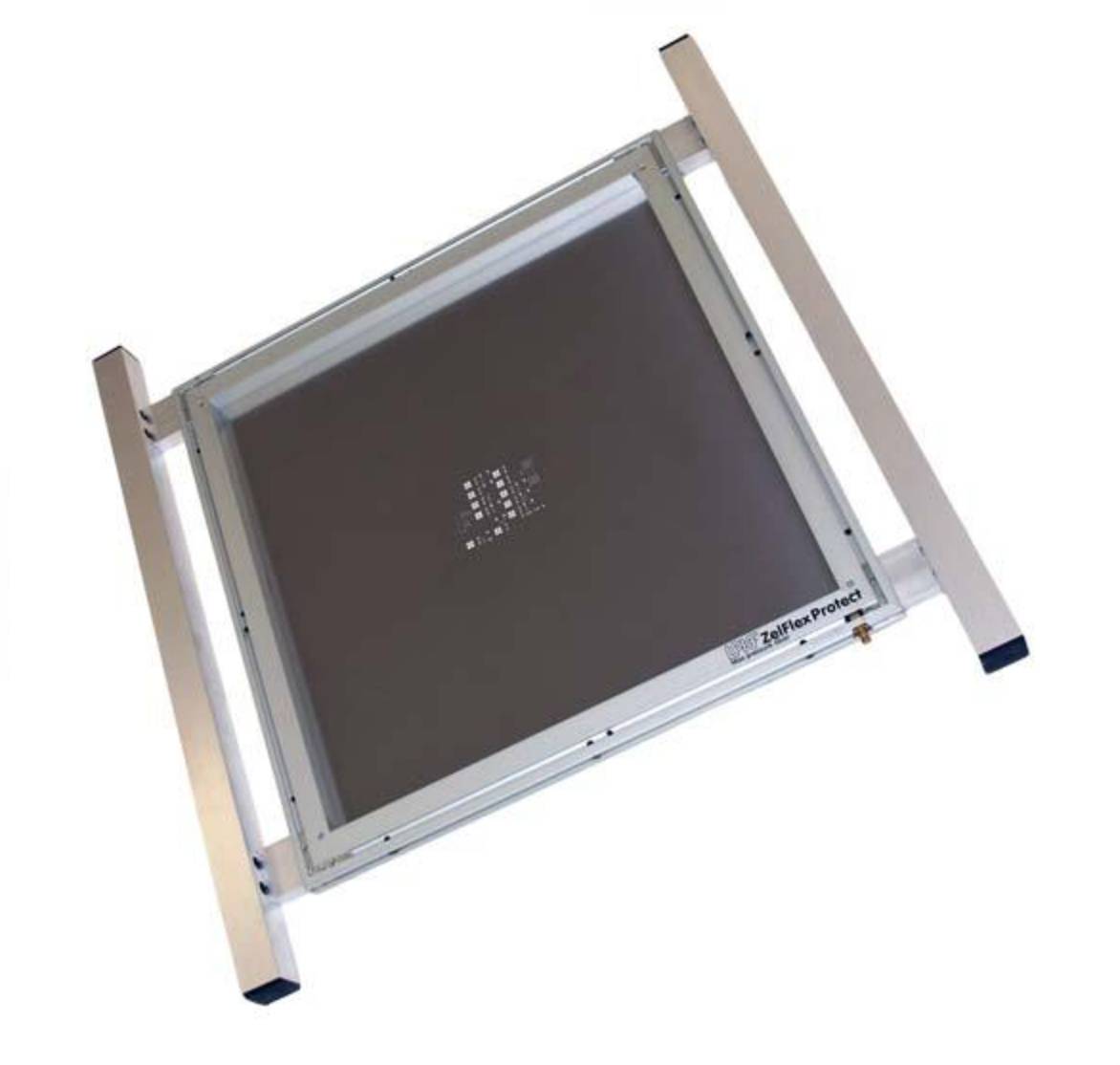

| Model | ZelFlex Protect 584x584x25 | ZelFlex Protect 584x584x25 / 736x736 | ZelFlex Protect 584x584x25 with rollers for the DEK |
| Part number | 010341 | 010396 | |
| Outside dimension, mm (inch) | 584 x 584 (23" x 23") | 736 х 736 (29''x 29'') | 584 x 584 (23" x 23") |
| Inner dimension, mm (inch) | 504 x 504 (19.8" x 19.8") | 504 x 504 (19.8" x 19.8") | 504 x 504 (19.8" x 19.8") |
| Max print area, mm (inch) | 484 x 484 (19.1" x 19.1") | 484 x 484 (19.1" x 19.1") | 484 x 484 (19.1" x 19.1") |
| Max squeegge width, mm (inch) | 480 (18,9'') | 480 (18,9'') | 480 (18,9'') |
| Foil dimension, mm (inch) | 576х576 (22,7''x 22,7'') | 576х576 (22,7''x 22,7'') | 576х576 (22,7''x 22,7'') |
| Thickness, mm | 25 | 25 / 40 | 25 |
| Weight, kg | 3,4 | 5,4 | 3,5 |
| Image |  |
 |
 |

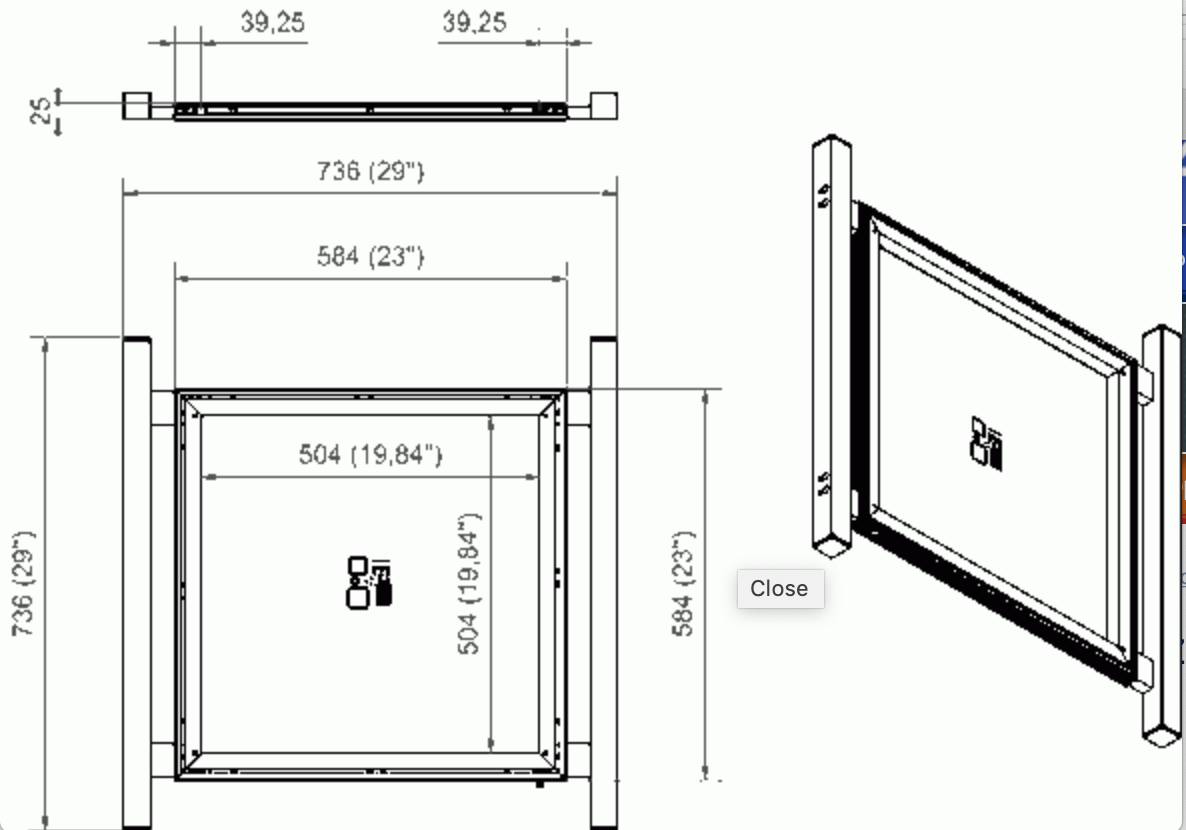

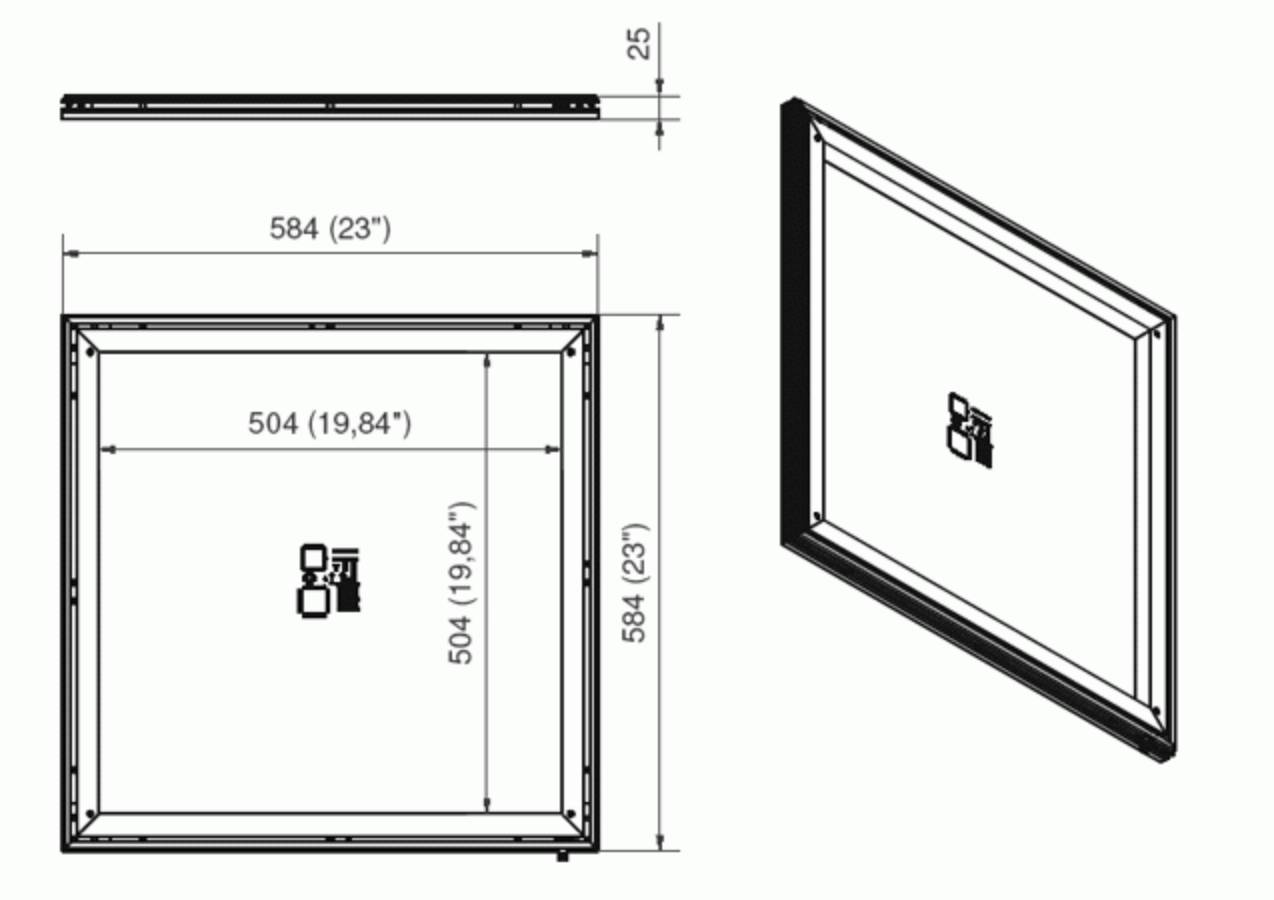

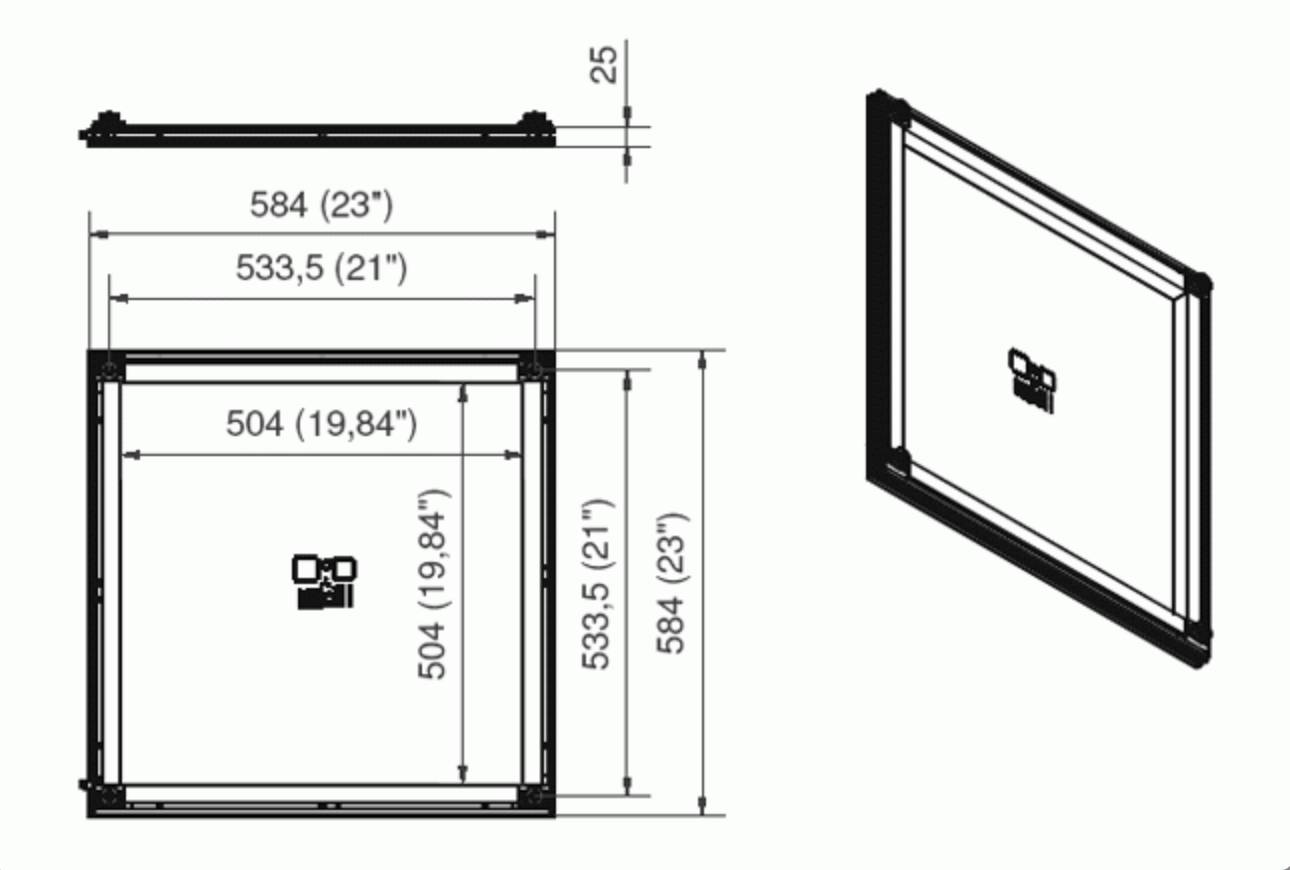

| Scheme |  |
 |
 |
| Compatibility with printers |
AUTOTRONIK-SMT BS1300, |
DEK 265, DEK 288, DEK ELAi, DEK Galaxy, DEK Horizon, DEK Horizon 01i, DEK Horizon 02i, DEK Horizon 03i, DEK Infinity, DEK Viking, EKRA E4, EKRA E5, EKRA E5-36, EKRA E5DualCon, EKRA E5HSP, EKRA E5STS, EKRA E5XL, EKRA E5xs, EKRA X1 (-S), EKRA X1-SL, EKRA X3, EKRA X4, EKRA X5, EKRA X6, ESSEMTEC SP500, HITACHI TP-200, MILARA SemiTouch, MILARA ST2929, MILARA TP2929, MPM Accela, MPM AccuFlex, MPM AP Excel, MPM SPM, MPM UltraFlex 3000, MPM UltraFlex BBP, MPM UP2000 HiE, PANASONIC SP28P-DHU, PANASONIC SPF, PANASONIC SPP-G3, REPRINT R29, SAMSUNG TECHWIN SMP200, SAMSUNG TECHWIN SMP400, SAMSUNG TECHWIN SP450V |
