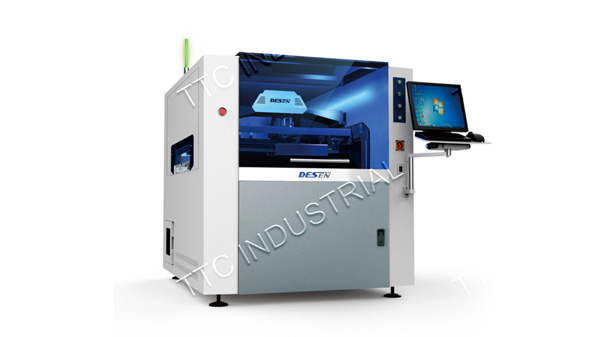

DESEN Hito Plus Full Automatic Solder Paste Printer
Made by
Shenzhen Desen
PCB size
50х50 ~ 510x510
PCB Thickness
0,4 - 6 mm
PCB Underside Clearance
less 25
Shipping
Payment
TimelineWe will arrange delivery to the named place of the location. The shipping terms are subject to agreement.
We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).
Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.
Description:
Desen Hito Plus high precision automatic solder paste printer is produced for the high precision stencil printing in SMT assembly.
Applicable to PCB types of mobile phones, communication, LCD TV, STB, electronics for vehicle, medical power equipment, aerospace and aviation, besides general electronics products.
Main features:
- Direct screw/single-point suspension squeegee;
- Pressure of squeegee adjusted by software;
- Digital cam 1,3MP, camera scene depth 2mm, FOV 10x8 mm;
- Automatic adjustment camera lighting;
- Automatic fiducial teach and find incorporating 0.1mm fiducial capture;
- Fiducial types - round, square, triangle, cross and user defined types;
- Two or four fiducial marks alignment system;
- Fiducials can be located anywhere on the PCB;
- PCB support positioning system (support block & pin, free splicing type vacuum cavity);
- Intelligent closed-loop compensation platform (UVW shaft drive independent adjustment);
- The platform height is automatically calibrated according to the thickness of the PCB;
- Servo motor drive;
- U gear belt, front rail fixed;
- Black transport belts and guides with surface resistivity of greater than 110 Ω;
- Screen frame adsorption function;
- 2D detect solder printing quality;
- CCD bar code recognition in standard configuration;
- Intelligent cleaning system - less paper consumption, solvent agent control module;
- User friendly operation Windows XP or Win10 interface (Win 7 option);
- Database automatic backup;
- 3 motion control board;
- Stencil hole inspection function (option);
- 17 "DELL display screen, keyboard, mouse and DESEN V2 software
- Three color intelligent LED warning light;
- Maintenance early warning function;
- SMEMA Input/Output 4 core international standard;
- RJ-45LAN(networking) and USB2 interface available.
Desen Hito technical specification:
| Model | DESEN Hito Plus |
| Print Accuracy | >2 Cpk@±18μm@,6σ |
| Repeating Accuracy | >2 Cpk@±8μm@,6σ |
| Cycle time, s | 7 |
| Max printing area, mm | 510х510 |
| Stencil Size, mm | 470х370 ~ 737х737 |
| Frame Thickness, mm | 25 ~ 38 |
| Stencil Clamping | Air Valve |
| Stencil Positioning | Automatic (2 ~ 4 fiducial marks) |
| Fiducial Size, mm | 0.1 ~ 3 |
| Platform Calibration Limit, mm | X: ± 4, Y: ± 6 |
| Platform Direction Limit | Z: ± 2 ° |
| PCB Printing Size, mm | 50х50 ~ 510x510 |
| PCB Thickness, mm | 0,4 ~ 5 |
| PCB Warpage, % | <1% diagonal |
| PCB Weight, kg | 0 ~ 3 |
| PCB Underside Clearance, mm | less than 25 |
| Print Pressure, kg | 0 ~ 10 |
| Print Gap, mm | 0 ~ 20 |
| Print Speed, mm/sec | 1 ~ 200 |
| Transport | L → R, L → L, R → L, R → R |
| Power Input | AC 220±10% , 1 PH, 50/60 Hz |
| Power Consumption, KW | 3 |
| Air Pressure, Kg/cm2 | 0,45 - 0,6 |
| Dimension, mm | 1320х1690х1510 |
| Weight, kg | 1500 |
