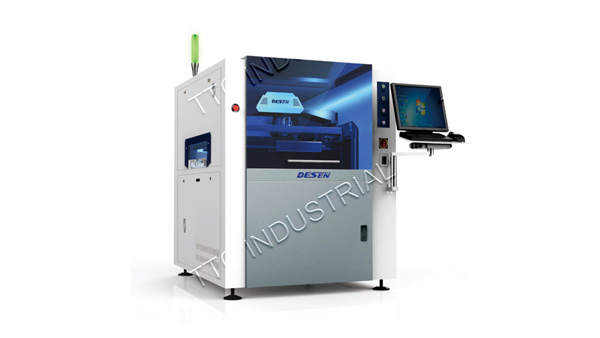

DESEN Hito Automatic SMT Solder Paste Printer

Made by

Shenzhen Desen

PCB size

50х50 ~ 460х340 (510x340 - option)

PCB Thickness

0,4 - 5 mm

PCB Underside Clearance

less 18

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

Desen Hito high precision automatic solder paste printer is designed for the high precision stencil printing in SMT industry.

Applicable to PCB types of mobile phone, communication, LCD TV, STB, electronics for vehicle, medical power equipment, aerospace and aviation, besides general electronics products.

Main features:

Direct screw/single-point suspension squeegee;

Digital cam 1,3MP, camera scene depth 2mm, FOV 10x8 mm;

Auto adjustment camera lighting;

Automatic fiducial teach and find incorporating 0.1mm fiducial capture;

Fiducial types - round, square, triangle, cross and user defined types;

2 or 4 fiducial marks alignment system;

Fiducials can be located anywhere on the PCB surface;

PCB support positioning system (contour block, support pin, vacuum cavity);

Intelligent closed-loop compensation platform (XYθ multi axis independent adjustment);

The platform height is automatically calibrated according to the thickness of the PCB;

Servo motor drive;

U gear belt, front rail fixed;

Black transport belts and guides with surface resistivity of greater than 110 Ω;

2D detect solder printing quality;

User friendly operation Windows XP interface (Win 7 option);

Database automatic backup;

4 motion control boards;

17 "DELL display screen, keyboard, mouse and DESEN V2 software

Three color intelligent LED warning light;

Maintenance early warning function;

SMEMA Input/Output 4 core international standard;

RJ-45LAN(networking) and USB2 interface available.

Desen Hito technical specification:

Model	DESEN Hito
Print Accuracy	≥2 Cpk@±18μm@,6σ
Repeating Accuracy	≥2 Cpk@±8μm@,6σ
Cycle time, s	7
Max printing area, mm	400х340
Stencil Size, mm	470х370 ~ 737х737
Frame Thickness, mm	20 ~ 40
Stencil Clamping	Air Valve
Stencil Positioning	Automatic (2 ~ 4 fiducial marks)
Fiducial Size, mm	0.1 ~ 3
Platform Calibration Limit, mm	X: ± 4, Y: ± 6
Platform Direction Limit	Z: ± 2 °
PCB Printing Size, mm	50х50 ~ 460х340 (510x340 - option)
PCB Thickness, mm	0,4 - 5
PCB Weight, kg	0 ~ 3
PCB Underside Clearance, mm	less than 18
Print Pressure, kg	0 ~ 10
Print Gap, mm	0 ~ 20
Print Speed, mm/sec	1 ~ 200
Transport	L → R, L → L, R → L, R → R
Power Input	AC 220±10% , 1 PH, 50/60 Hz
Power Consumption, KW	3
Air Pressure, Kg/cm2	0,45 - 0,6
Dimension, mm	1165х1390х1515
Weight, kg	1100
