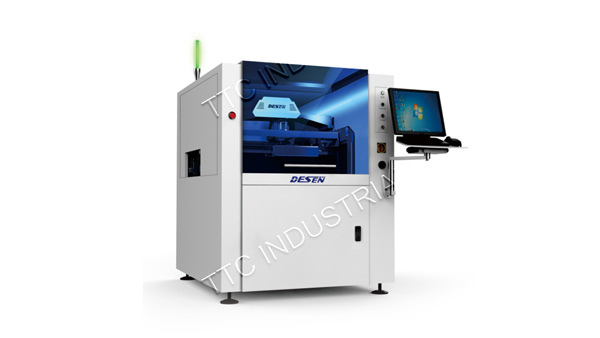

High Precision Fully Automatic Screen Printer DESEN 1008 Classic

Made by

Shenzhen Desen

PCB size

50x50 ~ 400x340

PCB Thickness

0,4 - 5 mm

PCB Underside Clearance

less 15

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

DESEN Classic 1008 is a high precision fully automatic screen printing machine. Can be used in the following industries: 5G, semiconductors, military aerospace, 3C products, photovoltaic products, new displays, automotive electronics, medical etc.

Please contact us to discuss all terms of the purchase!

Main features:

Direct drive system composed of two independent print heads;

Vision Alignment;

Manual adjustment camera lighting;

Fiducial types - round, square, triangle, cross and user defined types;

High precision stepping motors;

Unique scraper self-adaptive system;

Fully automatic set-up;

3 motion control boards;

Automatic stencil cleaning system can be programmed for a variety dry, wet and vacuum cycle;

3 Stages PCB Programmable Separation;

Strong vacuum chamber to support the PCB;

Precise PCB transport system;

PCB transportation and clamping systems driven by stepping motors;

User friendly operation Windows XP interface;

SMEMA;

2D Paste Inspection (Optional);

Automatic dispensing function (min diameter 0.8mm) - option;

Safe distribution of electric control;

Long machine life and parts/service availability.

DESEN Classic 1008 technical specification:

Model	DESEN Classic 1008
Print Accuracy	± 0.025 mm
Repeating Accuracy	±0.01 mm
Cycle time, s	7
Max printing area, mm	400х340
Stencil Size, mm	470х370 ~ 737х737
Frame Thickness, mm	25 ~ 40
Stencil Clamping	Air Valve
Stencil Positioning	Automatic (2 ~ 4 fiducial marks)
Fiducial Size, mm	0.1 ~ 3
Platform Calibration Limit, mm	X: ± 4, Y: ± 6
Platform Direction Limit	Z: ± 2 °
PCB Printing Size, mm	50х50 ~ 400х340
PCB Thickness, mm	0,4 - 5
PCB Weight, kg	0 ~ 3
PCB Underside Clearance, mm	less than 15
Print Pressure, kg	0 ~ 10
Print Gap, mm	0 ~ 20
Transport	L → R, L → L, R → L, R → R
Programmable Transport Speed, mm/s	100 ~ 1500
Conveyor Height, mm	900±40
Conveyor Width, mm	50 ~ 340
Power Input	AC 220±10% , 1 PH, 50/60 Hz
Power Consumption, KW	3
Air Pressure, Kg/cm2	0,45 - 0,6
Dimension, mm	1140х1360х1505
Weight, kg	1100
