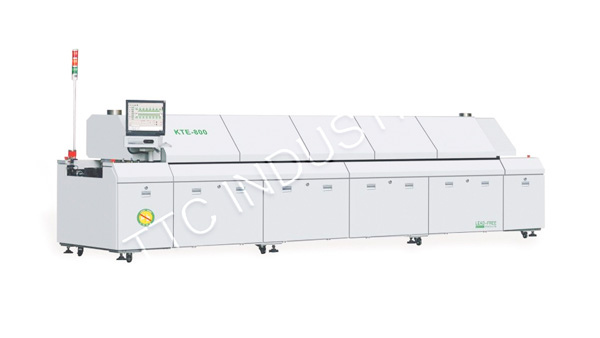

Lead free reflow oven with 8 zones KAIT KTE-800

Heating zones (top/bottom)

8/8

Cooling zones

2/0

Heating tunnel length

3110 mm

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

KTE-series reflow oven are suitable for production of photoelectric, power supplies, LED products, high-end optoelectronics.

KTE-800 is an economical lead free reflow oven with 8 zones equipped by high efficiency and sensitivity heater with warranty time more than 5 years.

Main features:

Three working modes: reflow soldering, thermoprofile creation and demo-presentation with online editing function;

Forced air cooling;

Rectifying plate is made of 1.55 mm galvanized sheet;

30 mm frame is well soldered, firm and durable;

Hot Air inverter motor with smooth speed adjustment from 0 to 3000 mm/min;

Any heating zone can be closed separately on PC;

High strength and hardened 2 sectional rails are very durable and wear resistant;

PCB temperature is lower than 70℃ at the exit;

All temperature profiles can be saved;

Chain tension device performs automatic conveyor width adjust by spring, avoid the chain stuck due to the heating;

Three modes of the conveyor chain lubrication: fine, standard, economical (manual in software);

Lubrication is controlled by PC, cycle and time can be set;

Chain and mesh conveyor are made of stainless steel;

The system enters cool down mode when the alarm is strict;

Generation the temperature profile in each zone for daily analyze and problem solve;

Windows7;

UPS and SMEMA are standard configuration;

Easy maintenance.

KTE-800 Lead Free Reflow Oven With 8 Zones Specification:

Model	KTE-800
Heating zones q-ty (top/bottom)	8/8
Heating zone length, mm	3110
Cooling zones q-ty (top)	2
Cooling method	Forced air cooling
Exhaust capacity	10 m3/min х 2
Start/Total power, KW	30/64
Consumption power, KW	10
Warm up time, min	30
Control system	Industrial PC
Temperature control method	PID, SSR-drive
Temperature control range, °С	room temp. ~ 300
Profile transfer time	up to 15 min
Temp. control accuracy, °С	± 1˚
PCB temperature deviation, °С	± 1,5˚
Abnormal alarm	High/low temperature
Conveyor type	Rail+ mesh+ chain
Conveyor height, mm	900±20
PCB max. width, mm	50-460
Component height, mm	25
Conveyor direction	Left to Right
Rail fixed method	Front fixed
Rail parallelism	± 0,3 mm
Transmission motor support plate thickness	2 mm
Conveyor speed, mm/min	300~2000
Frame square tube dimension, mm	30x30x5
Electricity supply	3 ph, 380/220V, 50/60Hz
Dimension, mm	5310х1360х1490
Weight, kg	2300
