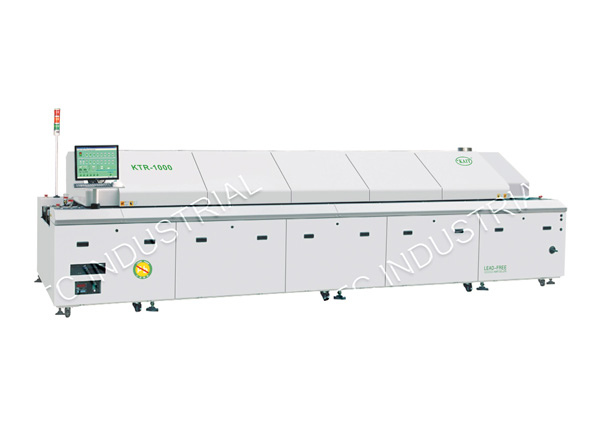

Lead free reflow oven with 10 heating zones KAIT KTR-1000

Heating zones (top/bottom)

10/10

Cooling zones

3/3

Heating tunnel length

3892 mm

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

KTR-series reflow oven provides the best soldering quality, has a reliable structure, a well soldered, strong 50mm frame and the world known brands of main electrical parts. KAIT KTR suitable for production of mobile phones, TV, computers and other products in the communication industry.

KTR-1000 has 10 top/bottom heating zones & 3 top/bottom cooling zones to ensure fast PCB cooling up to 45˚C, good for next process.

Main features:

Three working modes: reflow soldering, thermoprofile creation and demo-presentation with online editing function;

Forced air cooling;

Rectifying plate is made of 8mm high-pressure aluminum alloy;

50 mm frame is well soldered, firm and durable;

3 Hot Air inverter motors with smooth speed adjustment from 0 to 3000 mm/min;

Any heating zone can be closed separately on PC;

High strength and hardened 2 sectional rails are very durable and wear resistant;

5 mm thermal insulation between the inside and outside of the heating module;

Anti-seize device on the aluminum loading guide;

The insulation hood from 150mm cotton to keep the heat;

Special temperature inspection instrument for reliability of the soldering quality;

PCB temperature is lower than 45℃ at the exit;

All temperature profiles can be saved;

Generation the temperature profile in each zone for daily analyze and problem solve;

Transmission is driven by a rod;

Chain tension device performs automatic conveyor width adjust by spring, avoid the chain stuck due to the heating;

Three modes of the conveyor chain lubrication: fine, standard, economical (manual in software);

Lubrication is controlled by PC, cycle and time can be set;

Chain and mesh conveyor are made of stainless steel;

The system enters cool down mode when the alarm is strict;

Windows7;

UPS and SMEMA are standard configuration;

Easy maintenance.

KTR-1000 Lead Free Reflow Oven With 10 Zones Specification:

Model	KTR-1000
Heating zones q-ty (top/bottom)	10/10
Heating zone length, mm	3892
Cooling zones q-ty (top)	3/3
Cooling method	Forced air cooling
Exhaust capacity	10 m²/min х 2
Start/Total power, KW	36/80
Consumption power, KW	11
Warm up time, min	30
Control system	Industrial PC
Temperature control method	PID, SSR-drive
Temperature control range, °С	room temp. ~ 300
Profile transfer time	up to 15 min
Temp. control accuracy, °С	± 1˚
PCB temperature deviation, °С	± 1,5˚
Abnormal alarm	High/low temperature
Conveyor type	Rail+ mesh+ chain
Conveyor height, mm	900±20
PCB max. width, mm	50-400
Component height, mm	30
Conveyor direction	Left to Right
Rail fixed method	Front fixed
Rail parallelism	± 0,3 mm
Transmission motor support plate thickness	3 mm
Conveyor speed, mm/min	300~2000
Frame square tube dimension, mm	50x50x5
Electricity supply	3 ph, 380/220V, 50/60Hz
Dimension, mm	6300х1430х1530
Weight, kg	2700
