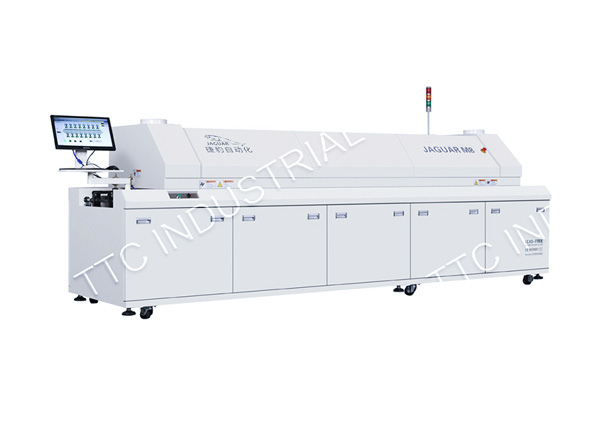

Hot air SMT convection reflow machine for soldering J-M8

Heating zones (top/bottom)

8/8

Cooling zones

1/1

Heat tunnel length

2900 mm

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

J-M8 reflow oven has 8 heating upper and bottom zones, which can be individually controlled for the temperature. J-M8 designed for common Lead Free application and environmental protection.

Main features:

Forced hot air and combo conveyor structure;

Multiple individually heated zones;

Efficient and energy-saving nickel heater;

Adjustable air-flow in the heating zones (60 cfm max);

The temperature difference between heating zones can reach 90˚C;

PID closed loop temperature control (accuracy ±1˚C);

Stainless steel conveyor;

Power reduction design;

Enclosed structure;

Windows 7 based;

Siemens PLC controller;

3 channel profiling system;

Light tower and audio alarm.

Built-in profiler & UPS;

Auto/manual lubrication of the conveyor;

SMEMA sensors;

Data storage for 80 Gb (at least 50 production programs);

Low noise.

Jaguar M8 technical specification:

Model	M8
Heating zones (up/bottom)	8/8
Heat Tunnel length, mm	2900
Cooling Zone (up/bottom)	1/1
Starting/Working Power, KW	26/5-8
Preheat Time, min	25
Control system	PLC, Touch screen
Heating Method	Hot air
Cooling Method	Force air
Temperature Control	PID-Control System, SSR
Temperature Range, °С	0~300˚C
Temperature Accuracy/Deviation, °С	± 1,5˚C
Temperature deviation, °С	± 2˚C
Type of conveyor	Mesh and chain (option — only mesh)
Conveyor height, mm	900±20
Mesh Belt Width, mm	400
PCB Width Allowance, mm	300
Conveyor width adjustment	Manual
Conveyor direction	Left to Right (Right to Left — option)
Rails clamping	Front rail fixed (rear — option)
Conveyor speed, mm/min	0-1000
Power supply	3 ph, 380V, 50 Hz
Dimension, mm	4600х1100х1490
Weight, kg	1000
