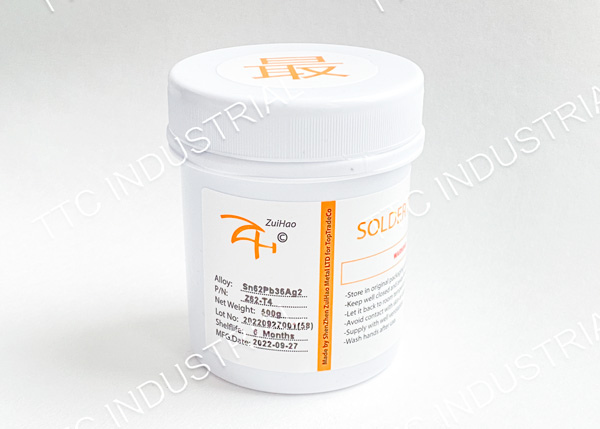

Tin lead No Clean Solder Paste Zui Hao Z62-T4 (alloy Sn62Pb36Ag2) is TTC Industrial own trademark.
Zui Hao Z62-T4 is a type of mid temperature tin lead solder paste. The alloy is formed by the 62% tin content, the 36% lead content, and the 2% silver content.
This product is suitable for demanding reflow soldering applications, such as those found in the surface mount technology used in the consumer electronics industry. Zui Hao Z62-T4 is used in the production: PCB, SMT, LED circuit boards, various lighting fixtures, computer motherboards, phone motherboards, and a variety of precise circuit boards.
- Excellent printing properties with a 0.3 mm pad pitch;
- Bright solder joint;
- The alloy powder has a particle size of 20~38 micron;
- The viscosity is rarely changed during the continuous printing process within 8 hours;
- No clean flux ROL0;
- Extremely good weldability;
- Good wetting property on the PCB made from different materials;
- Resistance to drying during the technological window;
- Low residues after soldering;
- Qualified test standarts J-STD-005, IPC-TM-650 etc.
| Name | Zui Hao Z62-T4 |
| Alloy | Sn62Pb36Ag2 |
| Alloy powder size and shape | 20~38 μm, sphere |
| Flux classification | no clean ROL0 |
| Flux content | 10,49% |
| Application | for fine printing with a pad pitch of 0,3 mm |
| Melting point | 179°C |
| Viscosity | 140±10% Pa.S |
| Tensile strength | 51,3 MPa |
| Shelf life | 6 months |
Application & storage notes:
Stencil material
Stainless steel, molybdenum, nickel or brass.
Printing scraper
Stainless steel / polyurethane 80~90 Shore hardness.
Scraper velocity
12,5~100 mm/sec.
Storage
The shelf life is 6 months when paste is stored at a temperature between 2°~8°C, with humidity range 35~55%. It should never be stored below 0°C.
Packing
500 gr jar, 10 jars in a box 34,5x27,5x23,5 sm
Thermoprofile
