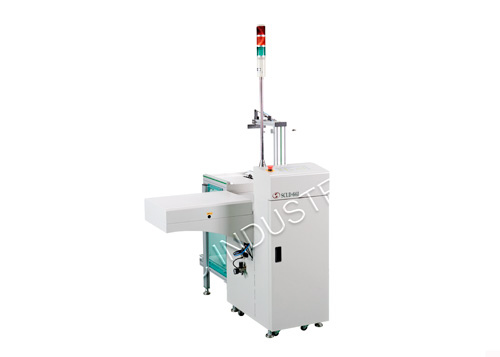

L Type PCB Loader Siacin SCLD-66L

PCB size

from 80 x 50 to 510 x 460 mm

Moving direction

Left to right (right to left as an option)

Interface

SMEMA

Air consumption

1 L/min

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

Siacin SCLD-66L is a L-Type PCB loader with transparent body for the bounding magazine. Choose a model depending on the loaded PCBs max size.

Main features:

Ergonomic design;

Special aluminum alloy body with transparent sides;

4 slots of the magazine for PCB loading;

Thin film touch panel with 3 digital displays, easy to set up and operate;

Mitsubishi PLC process control system (Japan);

Light and sound alarm;

SMEMA

Siacin SCLD-66 L-type technical specification:

Model	M	L	LL	XL
PCB size, mm	80х50-330х250	80х50-460х330	80х50-510х380	80х50-510х460
PCB feeding time	6 sec
Magazine lift height	10, 20, 30, 40 mm
Moving direction	left to right, left to right (option)
Air consumption volume	1 L/min
Interface	SMEMA in/out
Power supply	1 ph, 220V, 50/60 Hz, 2A
Conveyor height	900±20 mm
Dimensions, mm	1100х1250х1160	1400х1540х1160	1470х1540х1160	1470х1740х1160
Weight, kg	150	200	230	250

Siacin SCLD-66L in action:
