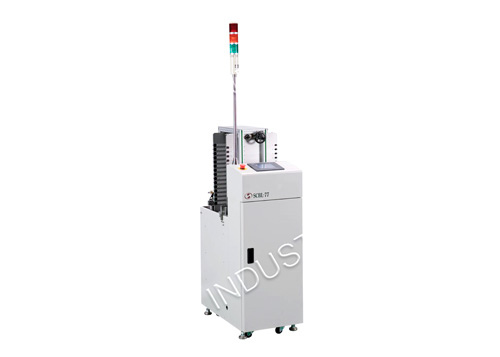

Automatic Buffer Stocker SIACIN SCBL-77

PCB size

from 80 x 50 to 510 x 460 mm

Operation mode

FiFO

Moving direction

Left to right (right to left as an option)

Interface

SMEMA

Get price

We will arrange delivery to the named place of the location. The shipping terms are subject to agreement.

We work with LLC, IBC, Corp, LTD etc. and we are able to offer flexible payment terms for an one-time purchase (a set of equipment or a large batch of the consumables and spare parts).

Equipment: 8-16 weeks;
Spare parts: 25-45 working days;
Consumables: as agreed.

Description:

Automatic buffer stocker SIACIN SCBL-77 is used for automatic feeding and temporary storage of up to 15 PCBs on SMT production lines. 4 buffer stocker sizes are available.

Main features:

Automatic feeding and temporary storage of PCBs;

Buffer stocker has 15 pitches for storing PCBs (bounding magazine);

FIFO system (first in - first out);

Adjustable magazine lift height 10, 20, 30 or 40 mm;

Easy operating touch screen;

Mitsubishi PLC with multifunctional electric loops and programs is extremely stable to ensure the smooth production line and facilitate the best production efficiently;;

Light and sound alarm;

SMEMA

Siacin SCBL-77 technical specification:

Model	M	L	LL	XL
PCB size, mm	80х50 - 330х250	80х50 - 460х330	80х50 - 510х380	80х50 - 510х460
Max PCB quantity, item	15
Magazine lift height	10, 20, 30, 40 mm
PCB feeding time	6 sec
Component height, mm	Min. 0,6
Conveyor (type, direction, height)	SMEMA, left - right (right - left as an option), working height 900 ± 20 mm
Power supply	1∮220V, 1.6A, 50/60 Hz
Dimensions, mm	460x770x1160	590x900x1160	640x900x1160	640x960x1160

Automatic Buffer Stocker SIACIN SCBL-77 in action:
